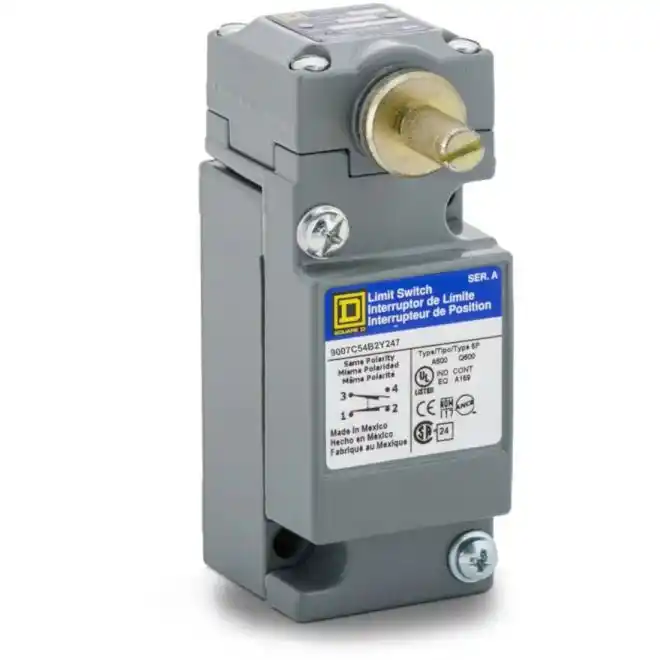

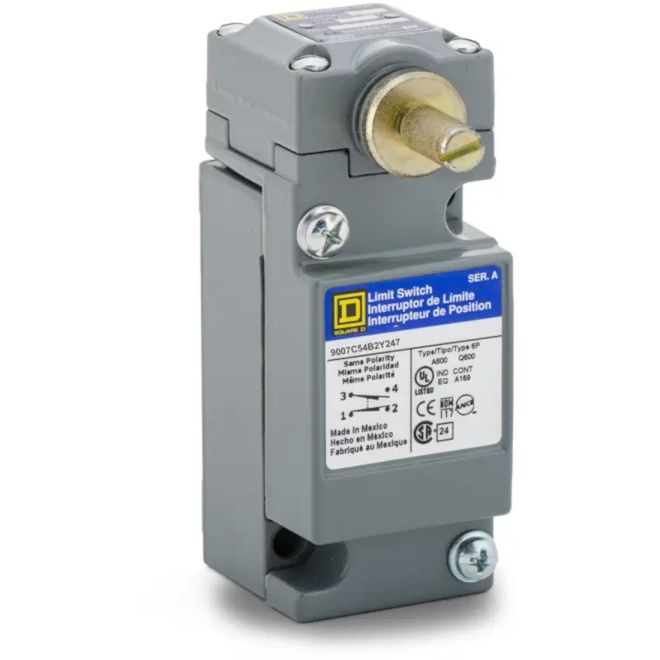

Square D 9007C54B2Y247 Limit switch 600V 10amp
SKU#:
124691
Schneider Electric 9007C54B2Y247 limit switches are used in all automated installations and also in a wide variety of applications, due to the numerous advantages inherent to their technology. Any Telemecanique rotary lever arm 9007C, CF or CR switch can be furnished with an optional shaft and hub combination which will accept the lever arms normally used with 9007T and FT limit switches. To order, add S9 as suffix to the device number. For example, to order a Square D 9007C54B2 with this modification, order as a 9007C54B2S9.
| Brand | Schneider Electric / Telemecanique / Square D |
|---|---|
| Manufacturer Part Number | 9007C54B2Y247 |
| Manufacturer Alternate Number | 9007C54B2Y247 |
| UPC | 785901103844 |
| Terminal Type | Screw Terminals |
| Rated Current | 1.2 A 600 V AC, A600, 0.1 A 600 V DC, Q600 |
| Actuator Type | Zinc spring return without operating lever |
| Switch Type | NC-NO |
| Electrical Operations Minimum | 1,000,000 |
| IP Rating | IP67 |
| Special Function | Standard box |
| Type | Limit switch |
| Height (mm) | 102mm |
| Width (mm) | 40mm |
| Depth (Length) (mm) | 64mm |
| Weight (lbs) | 1.26 |
| UOM | ea |
