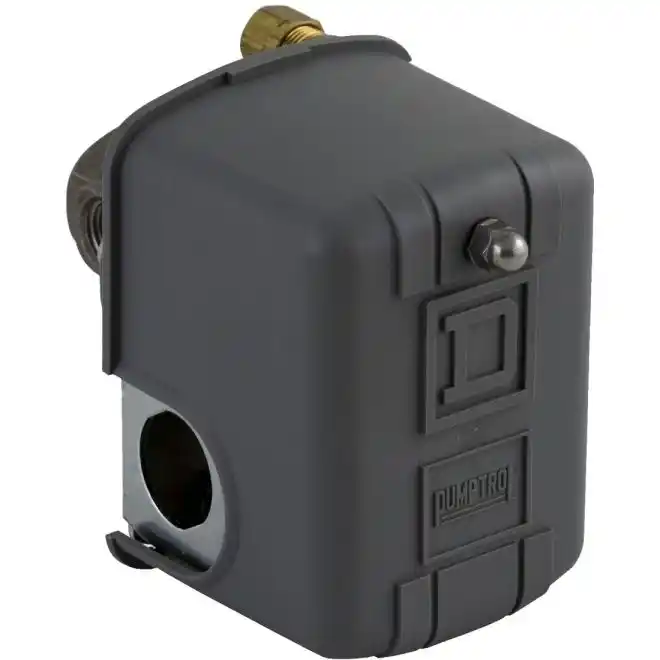

Square D 9013FHG12J52X Pumptrol compressor switch
SKU#:
103184
Square D 9013FHG12J52X is part of the Nema Pressure Switches range, an offer of air compressor switches. Schneider Electric air compressor switch has 2 normally closed, snap action, DPST-DB (double pole single throw, double break) form YY contacts and off at 125psi pressure setting value. Telemecanique pressure switch with a pressure sensor size of 150psi, an adjustable range on rising pressure of 70psi to 150psi and approximate fixed differential of 30psi.
| Brand | Schneider Electric / Telemecanique / Square D |
|---|---|
| Manufacturer Part Number | 9013FHG12J52X |
| UPC | 785901522935 |
| Medium | Air |
| Measuring Range | 70 to 150 psi |
| Output Type | 2 NC, snap action, DPST-DB, Form YY |
| Process Connection | 0.25 inch NPSF internal UL 508 |
| Material | Zinc plated steel or equivalent flange |
| Electrical Connection | Power circuit |
| Supply Voltage Range | 575 V UL 508 |
| IP Rating | IP20 conforming to IEC 60529 |
| Height (mm) | 94mm |
| Width (mm) | 71mm |
| Pressure Unit | psi |
| Depth (Length) (mm) | 96mm |
| Weight (lbs) | 0.99 |
| Type | Square D Pumptrol |
| UOM | ea |
