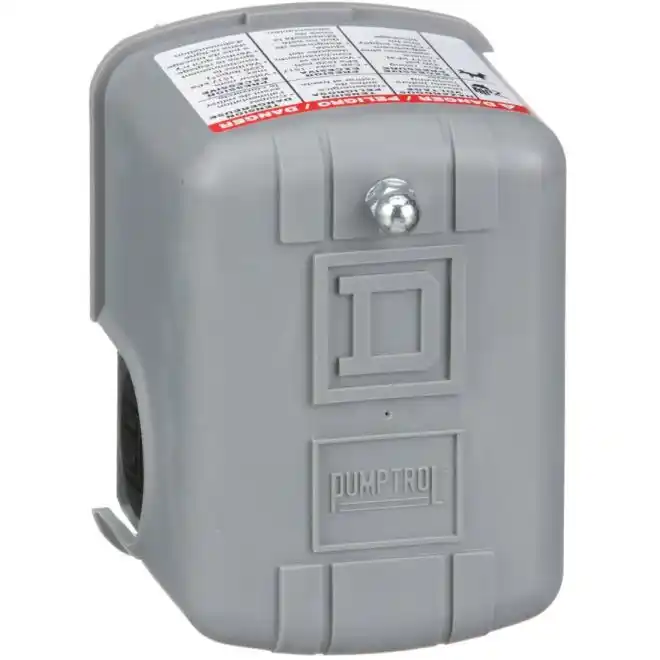

Square D 9013FSG2J21 Pumptrol water pump switches
SKU#:
103299
Schneider Electric Pumptrol 9013FSG standard water pump pressure switches are suitable for all types of pumps, including jets, submersible, and reciprocating. Squre D 9013FSG2J21 water pump pressure switches are used to control electrically driven water pumps. They are diaphragm actuated. These water pump pressure switches are UL Listed and CSA certified as commercial control equipment. It is furnished with screw clamp terminals for electrical connection and 0.25inch NPSF internal for fluid connection. Telemecanique switch has a diaphragm actuator which can be operated from any position and adjustable differential scale for internal settings.
| Brand | Schneider Electric / Telemecanique / Square D |
|---|---|
| Manufacturer Part Number | 9013FSG2J21 |
| UPC | 785901077213 |
| Medium | Water |
| Measuring Range | 20 to 65 psi |
| Output Type | 2 NC, snap action, DPST-DB, Form YY |
| Process Connection | 0.25 inch NPSF internal UL 508 |
| Material | Zinc plated steel or equivalent flange |
| Electrical Connection | Power circuit |
| Supply Voltage Range | 575 V UL 508 |
| IP Rating | IP20 conforming to IEC 60529 |
| Height (mm) | 71mm |
| Width (mm) | 71mm |
| Pressure Unit | psi |
| Depth (Length) (mm) | 96mm |
| Weight (lbs) | 0.99 |
| Type | Square D Pumptrol |
| UOM | ea |
