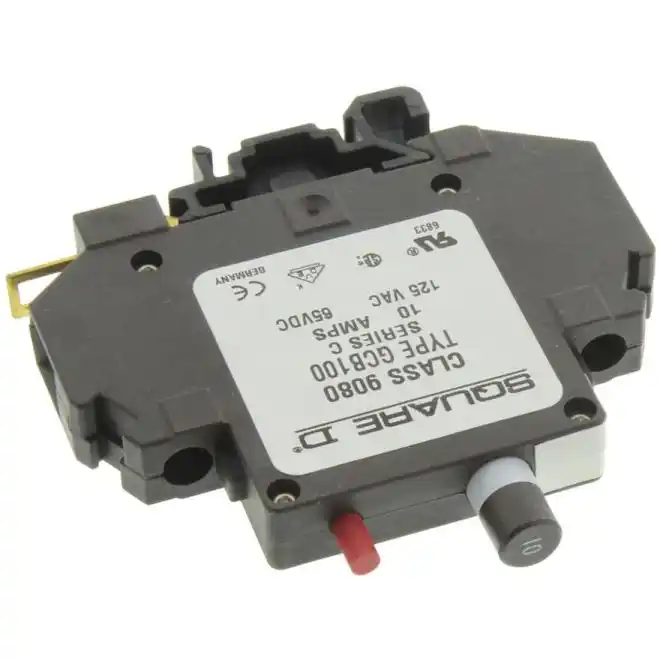

Square D 9080 GCB100 Circuit Breakers 10.0A 125VAC
SKU#:
104607
Schneider Electric Class 9080 Type GCB Series C 9080GCB100 thermal-magnetic circuit protector is a trip-free, track-mountable device with current ratings from 0.1 to 15 amperes. Maximum interrupting rating 200 amperes, but not exceeding 10,000% (100 times) rated current. Square D 9080GCB thermal magnetic circuit protector's thermal feature trips when there is an overload of ten times rated current or less. The magnetic mechanism trips instantaneously when there is a short circuit. Square D 9080 GCB100 is comparable to Phoenix Contact TMC 42-01-10A, ETA Magnetic 42-01-10, and Weidmuller 9101900000.
| Brand | Schneider Electric / Telemecanique / Square D |
|---|---|
| Manufacturer Part Number | 9080GCB100 |
| Manufacturer Alternate Number | 9080 GCB100 |
| UPC | 785901481010 |
| Rated Voltage | 125VAC |
| Rated Current | 10A |
| Number of Poles | 1 |
| Mounting Type | 9080GH Track, DIN Rail |
| Electrical Connection | Box Lugs |
| Operating Temperature | -30°C - +60°C |
| Rated Voltage DC | 65VDC |
| Trip Characteristic | Thermal-Magnetic |
| Type | Circuit Breaker |
| Height (mm) | 88mm (3.46") |
| Width (mm) | 80mm |
| Depth (Length) (mm) | 13mm |
| Weight (lbs) | 0.16 |
| UOM | ea |
