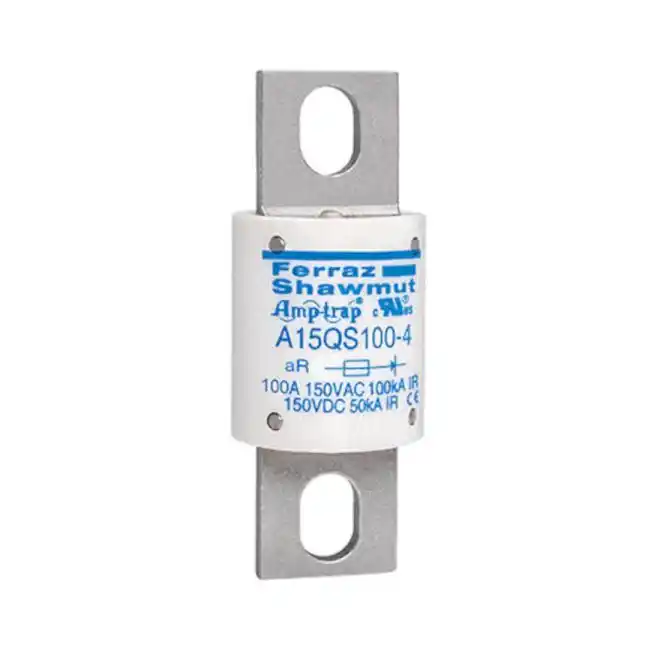

Mersen A15QS100-4 Ferraz Form 101 High Speed Fuse
SKU#:
243447
Mersen A15QS Amp-Trap® Form 101 high speed fuses were designed for the specific protection of diodes and other semiconductor devices rated 150VAC/DC. The A15QS100-4 product line's compact design is perfect for those applications that have limitations on available space. Ferraz Shawmut A15QS100-4 is comparable to GE 41A296134P4, Eaton Cooper Bussmann FWA-100B, Littelfuse LA15QS1004 LA15QS1004TI, Ferraz Shawmut A13X100-4.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | A15QS100-4 |
| Manufacturer Alternate Number | J232285 |
| UPC | 782001287665 |
| Rated Voltage AC | 150VAC |
| Rated Voltage DC | 150VDC |
| Rated Current | 100A |
| Fuse Class | Semiconductor |
| Speed/Characteristic | High Speed |
| Mounting Type | Bolted |
| Short Circuit Current Rating (SCCR) | 200kA |
| Connection/Terminal Material | Tin-Plated Brass |
| Terminal Type | Blade |
| Body/Insulating Material | GMG |
| Type | High Speed |
| Height (mm) | 29mm |
| Width (mm) | 29mm |
| Depth (Length) (mm) | 68mm |
| Weight (lbs) | 0.17 |
| UOM | ea |
