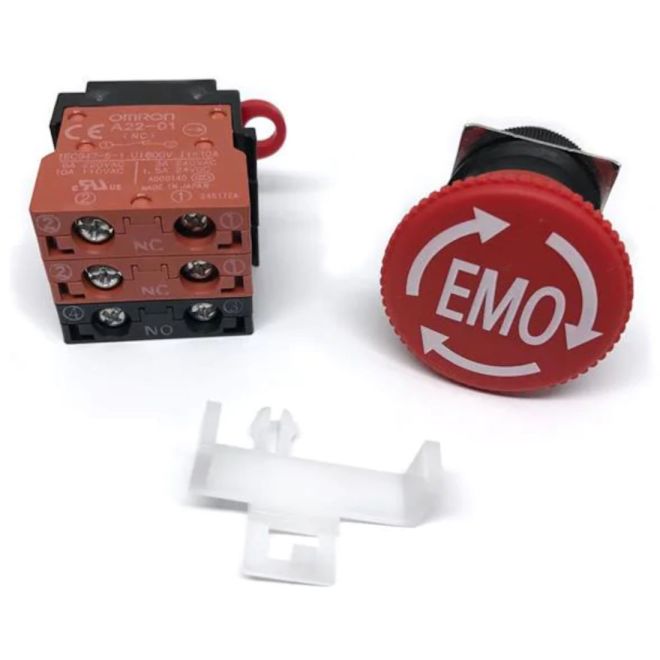

Omron A22E-M-12-EMO 40mm Emergency Stop Switches
SKU#:
576423
An emergency stop pushbutton switch stops machine equipment in an emergency to protect the safety of workers. Improper installation of the switch or malfunctioning of the switch can lead to a major accident or damage to the machine equipment. Omron focused on improving the level of reliability and safety of our A22E-M-12-EMO emergency stop design. Conventional Omron emergency stop pushbutton switches were made to IP65 standards, but the unique technology used for our rubber-designed covers achieves IP69K specifications that can withstand high temperature and high-pressure sprays from any direction.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | A22E-M-12-EMO |
| Manufacturer Alternate Number | A22EM12EMO |
| UPC | 4547648637947 |
| IP Rating | IP65 |
| Mounting Type | Panel, Front |
| Color | Red |
| Shape | Round 40mm |
| Illuminated | No |
| Light Source | Non-Lighted |
| Supply Voltage Range | 110VAC |
| Terminal Type | Screw Terminal |
| Marking | EMO |
| Action Type | Push-Lock, Turn-Reset |
| Configuration Guidelines | A22Z-B101Y cannot be used in combination with the A22Z-3476-1 and the A22Z-EG[]. |
| Contact Arrangement | 1 N/O + 2 N/C (1 N/C + 1 N/C) |
| Height (mm) | 40mm (1.57") |
| Width (mm) | 40mm |
| Depth (Length) (mm) | 86.7mm |
| Weight (lbs) | 0.14 |
| UOM | ea |
