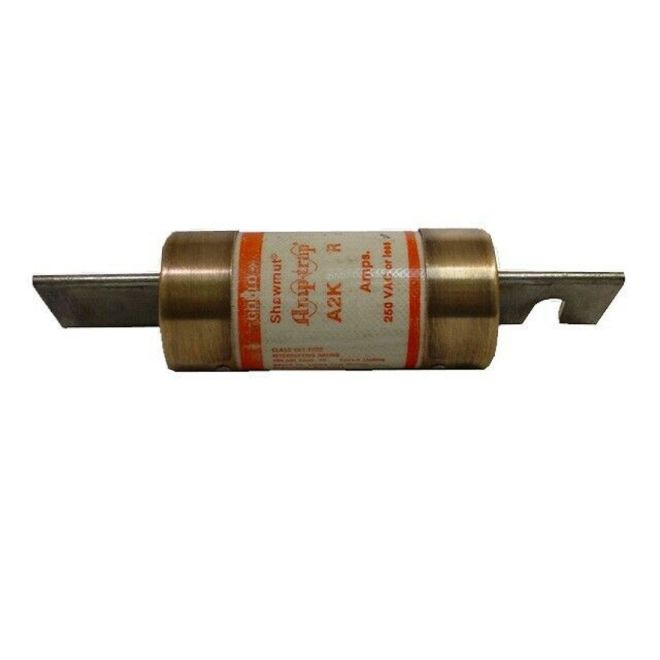

Mersen A2K600R Ferraz Fast Acting/Class RK1 Fuse
SKU#:
27476
Current-limiting Mersen A2K and A6K fuses provide excellent protection where high available short circuit currents exist. A2K600R fast-acting fuses are particularly good for branch/feeder circuits and back-up protection.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | A2K600R |
| Manufacturer Alternate Number | K201926 |
| UPC | 782001915414 |
| Rated Voltage AC | 250VAC |
| Rated Voltage DC | 250VDC |
| Rated Current | 600A |
| RoHS Compliant | Yes |
| Fuse Class | RK1 |
| Speed/Characteristic | Fast-Acting |
| Mounting Type | Clip |
| Short Circuit Current Rating (SCCR) | 200kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Terminal Type | Blade |
| Body/Insulating Material | Poly Tube |
| Type | Fast Acting |
| Height (mm) | 65mm |
| Width (mm) | 65mm |
| Depth (Length) (mm) | 264mm |
| Weight (lbs) | 3.90 |
| UOM | ea |
