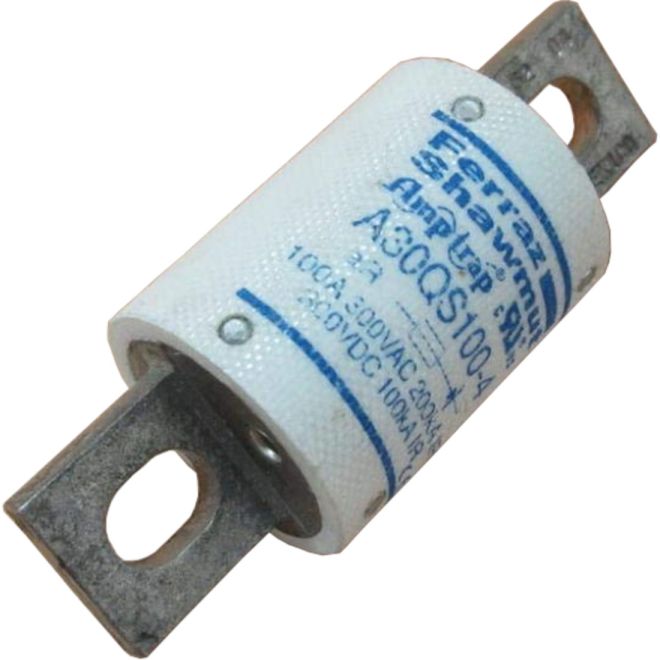

Mersen A30QS100-4 Ferraz High Speed Fuse 100A
SKU#:
167088
Mersen A30QS Amp-Trap® high speed fuses are intended for the protection of Power Semiconductors such as diodes, phase control SCRs and other power semiconductor devices. The A30QS100-4 is recommended for new applications providing solutions for your critical protection needs at 300V and less semiconductors.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | A30QS100-4 |
| Manufacturer Alternate Number | D226898 |
| UPC | 782001280741 |
| Rated Voltage AC | 300VAC |
| Rated Voltage DC | 300VDC |
| Rated Current | 100A |
| RoHS Compliant | Yes |
| Fuse Class | Semiconductor |
| Speed/Characteristic | High Speed |
| Mounting Type | Bolted |
| Short Circuit Current Rating (SCCR) | 63kA |
| Connection/Terminal Material | Tin-Plated Brass |
| Terminal Type | Blade |
| Body/Insulating Material | GMG |
| Height (mm) | 31mm (1.22") |
| Width (mm) | 31mm |
| Depth (Length) (mm) | 80mm |
| Weight (lbs) | 0.30 |
| UOM | ea |
