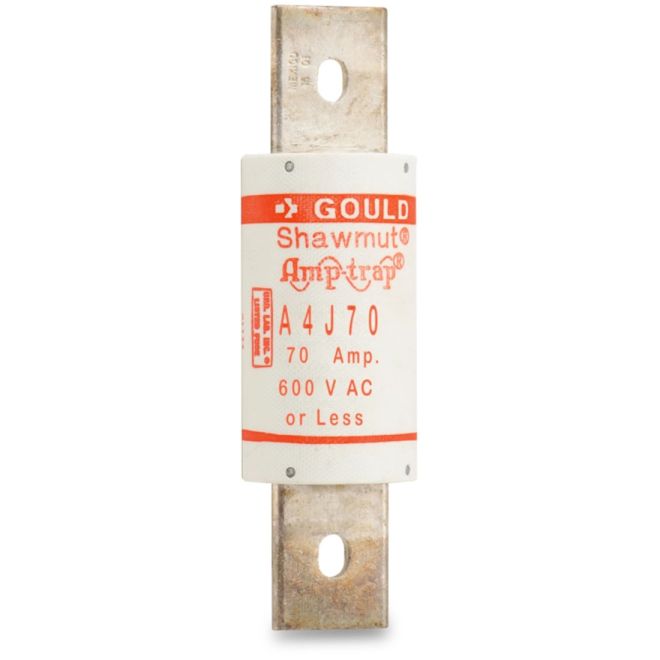

Mersen A4J70 Ferraz Fast Acting/Class J Fuse
SKU#:
27652
Mersen A4J Class J fuses deliver excellent current-limiting protection to a wide variety of applications. A4J70's unique dimensions prevent the substitution of other fuses with lower voltage ratings, interrupting ratings, or current-limiting capability. Ferraz Shawmut A4J70 is comparable to Mersen AJT70.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | A4J70 |
| Manufacturer Alternate Number | H212711 |
| UPC | 782001960285 |
| Rated Voltage AC | 600VAC |
| Rated Voltage DC | 300VDC |
| Rated Current | 70A |
| RoHS Compliant | Yes |
| Fuse Class | J |
| Speed/Characteristic | Fast-Acting |
| Mounting Type | Clip |
| Short Circuit Current Rating (SCCR) | 200kA |
| Connection/Terminal Material | Silver-Plated Copper |
| Terminal Type | Blade |
| Body/Insulating Material | GMG |
| Height (mm) | 27mm (1.06") |
| Width (mm) | 27mm |
| Depth (Length) (mm) | 118mm |
| Weight (lbs) | 0.25 |
| UOM | ea |
