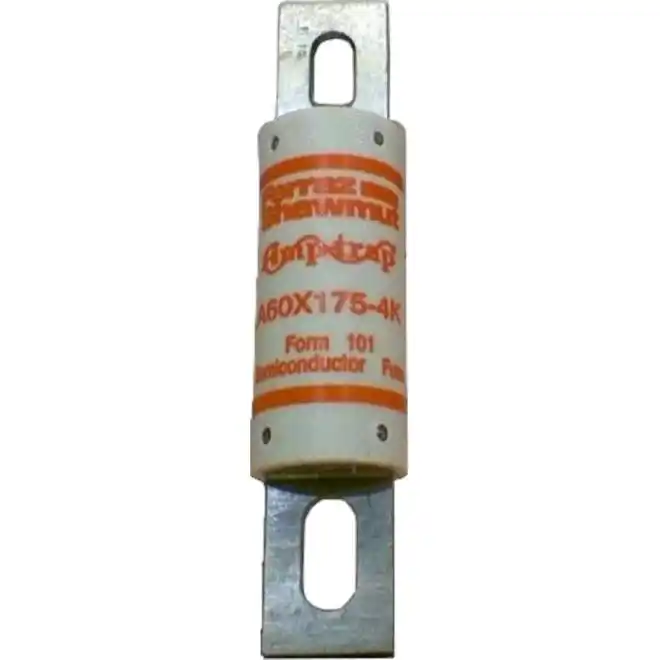

Mersen A60X175-4 Ferraz Form 101 High Speed Fuse
SKU#:
109787
Mersen A60X Amp-Trap® Form 101 high speed fuses are popular for the protection of higher voltage heavy rectifiers such as traction rectifiers. A60X175-4 fuses can carry long sustained overloads common with heavy duty apparatus. 700A through 2000A sizes are of compact, hockey-puck design, able to provide high power protection in a small space. Ferraz Shawmut A60X175-4 is comparable to Littelfuse L60S175.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | A60X175-4 |
| Manufacturer Alternate Number | Q223183 |
| UPC | 782001944773 |
| Rated Voltage AC | 600VAC |
| Frequency | 50/60Hz |
| Rated Current | 175A |
| Speed/Characteristic | High Speed |
| Mounting Type | Bolted |
| Short Circuit Current Rating (SCCR) | 200kA |
| Connection/Terminal Material | Tin-Plated Brass |
| Terminal Type | Bolted |
| Body/Insulating Material | GMG |
| Type | High Speed |
| Height (mm) | 31mm (1.22") |
| Width (mm) | 31mm |
| Depth (Length) (mm) | 112mm |
| Weight (lbs) | 0.55 |
| UOM | ea |
