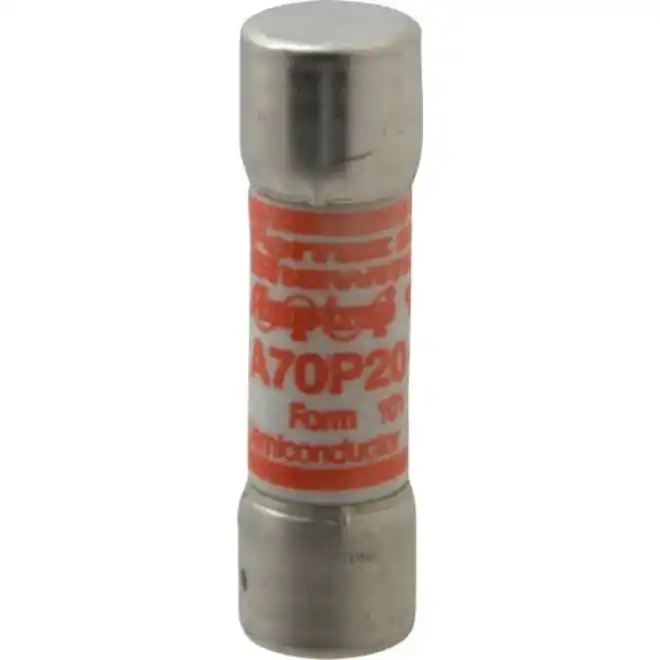

Mersen A70P20-1 Ferraz Form 101 High Speed Fuse
SKU#:
35408
Mersen A70P Amp-Trap® Form 101 high speed fuses were developed for higher voltage AC and DC drives, UPS systems, reduced voltage motor starters and similar applications where lower l2t and superior reliability are needed. A70P20-1 is a very popular fuse, vailable in a wide range of ratings. Typically used for replacement.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | A70P20-1 |
| Manufacturer Alternate Number | D215352 |
| UPC | 782001947101 |
| Rated Voltage AC | 700VAC |
| Rated Current | 20A |
| Speed/Characteristic | High Speed |
| Mounting Type | Clip |
| Short Circuit Current Rating (SCCR) | 50kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Terminal Type | Ferrule |
| Body/Insulating Material | GMG |
| Type | High Speed |
| Height (mm) | 15mm |
| Width (mm) | 15mm |
| Depth (Length) (mm) | 51mm |
| Weight (lbs) | 0.41 |
| UOM | ea |
