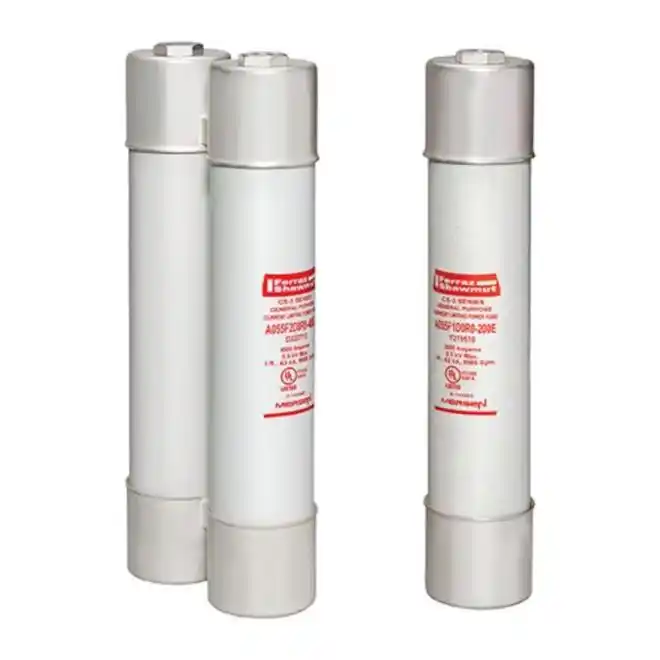

Mersen A825X25E-1 Transformer Protection Fuse
SKU#:
35396
Mersen fuses for the protection of transformers and distribution lines deliver overload and short circuit protection. A825X25E-1 current-limiting fuses will melt at current that can be as low as 1.7 times the fuse current ratings up to its maximum interrupting rating. These fuses are designed to withstand the transformer magnetizing inrush current. They have 2 (size C), 3 (size D) and 4 (size E) inch diameter barrels with ferrules and are mounted in spring reinforced clips.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | A825X25E-1 |
| Manufacturer Alternate Number | G216413 |
| UPC | 782001803629 |
| Rated Voltage AC | 8250VAC |
| Rated Current | 25A |
| Speed/Characteristic | E-Rated |
| Mounting Type | Clip |
| Short Circuit Current Rating (SCCR) | 50kA |
| Indicator | Yes |
| Connection/Terminal Material | Silver-Plated Copper |
| Terminal Type | Ferrule |
| Body/Insulating Material | Poly Tube |
| Type | Medium Voltage |
| Height (mm) | 77mm |
| Width (mm) | 77mm |
| Depth (Length) (mm) | 404mm |
| Weight (lbs) | 10.01 |
| UOM | ea |
