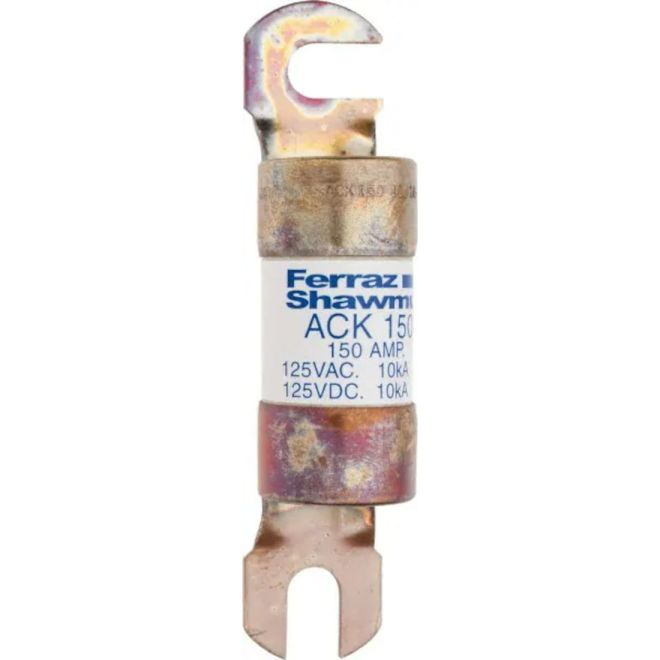

Mersen ACK150 Ferraz Forklift Truck Special Fuse

SKU#:

110148

Mersen Forklift Truck and Battery Isolator fuses are specially designed for the heavy duty loads associated with DC battery powered equipment such as forklift trucks, hand trucks, motorized work platforms, and other DC battery operated systems. Rugged construction and stud mounted bolt-in design assure a long life in adverse conditions for these fuses. This expanded line of Forklift Truck Fuses can fulfill virtually all of your heavy duty circuit protection needs up to 125V AC or DC. The round body ACK150 ACK, ACL and ALS fuses combine higher voltage ratings and more ampere ratings with higher interrupting ratings. The flat CNL and CNN style fuses have a lower voltage rating but are also AC and DC, more space saving and have visual "see-thru" indication to show when they have operated.
Specifications
Brand Mersen / Ferraz Shawmut / Gould
Manufacturer Part Number ACK150
Manufacturer Alternate Number H201993
UPC 6893879129
Rated Voltage AC 125VAC
Rated Voltage DC 125VDC
Rated Current 150A
Mounting Type Bolted
Short Circuit Current Rating (SCCR) 10kA
Connection/Terminal Material Copper
Terminal Type Blade
Body/Insulating Material Poly Tube
Height (mm) 29mm
Width (mm) 29mm
Depth (Length) (mm) 114mm
Weight (lbs) 0.20
UOM ea
