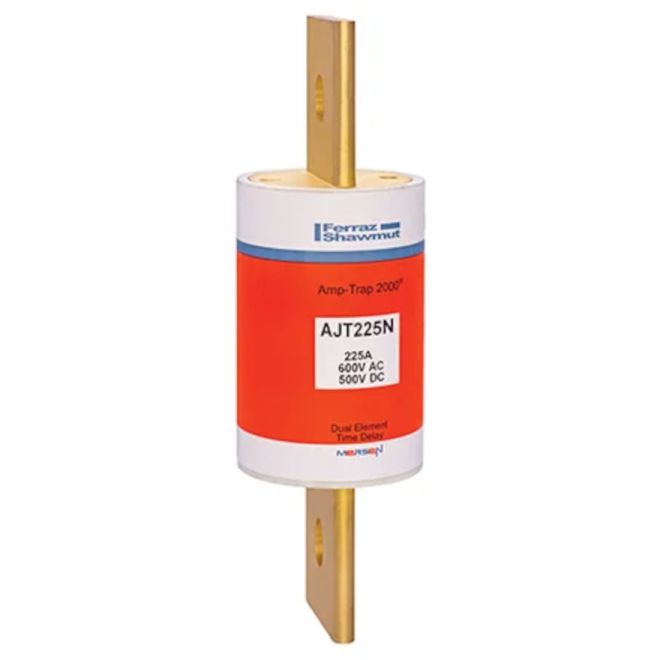

MERSEN AJT225N Ferraz Class J Time Delay Fuse
SKU#:
613784
Amp-Trap 2000® AJT fuses provide non-indication as well as a SmartSpot® visual open fuse indicator. With advanced material technology the AJT225N fuse provides IEC Type 2 No Damage protection to main, feeder, and branch circuits, for all types of loads - yet, they require only half the mounting space needed for 600VAC Class RK fuses. AJT's time-delay characteristics are ideal for handling typical motor and transformer inrush currents, while also providing superior current-limiting ability. Ferraz Shawmut AJT225N is comparable to Eaton Cooper Bussmann LPJ-225SP, Littelfuse JTD225, JTD-225, Mersen A4J225.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | AJT225N |
| UPC | 0782001497880 |
| Rated Voltage AC | 600VAC |
| Rated Voltage DC | 500VDC |
| Frequency | 50/60 Hz |
| Rated Current | 225A |
| RoHS Compliant | Yes |
| Fuse Class | J |
| Speed/Characteristic | Time Delay |
| Mounting Type | Clip, Bolted |
| Short Circuit Current Rating (SCCR) | 200kA |
| Indicator | No |
| Connection/Terminal Material | Brass |
| Terminal Type | Blade |
| Body/Insulating Material | GMG |
| Type | Time Delay |
| Height (mm) | 54mm (2.13") |
| Width (mm) | 54mm |
| Depth (Length) (mm) | 182mm |
| Weight (lbs) | 0.2 |
| UOM | ea |
