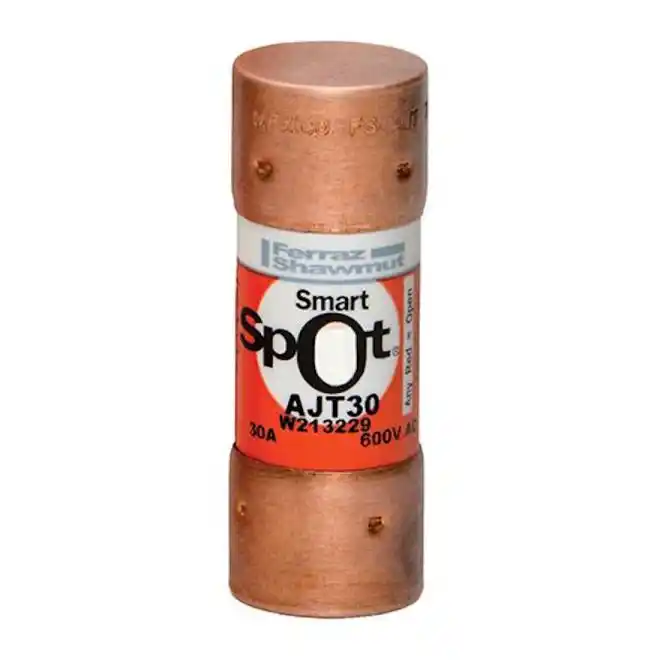

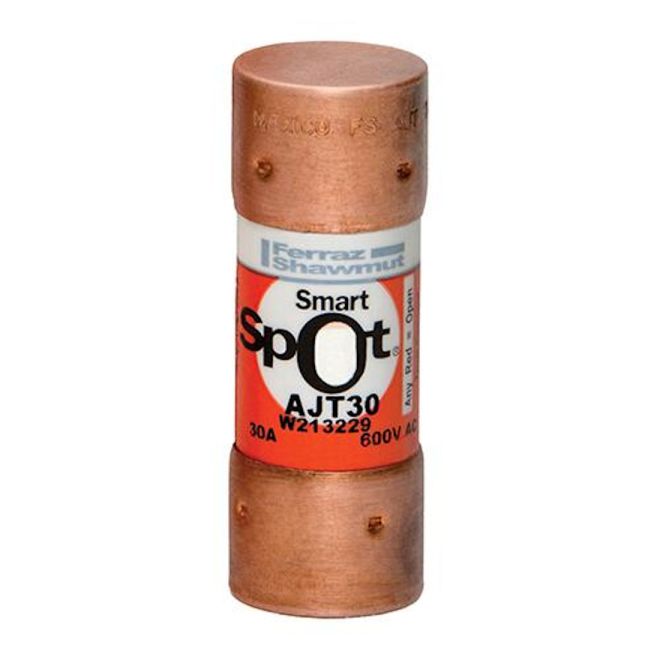

Mersen AJT30 Ferraz Class J Time Delay Fuse
SKU#:
35418
Amp-Trap 2000® AJT fuses provide non-indication as well as a SmartSpot® visual open fuse indicator. With advanced material technology the AJT30 fuse provides IEC Type 2 No Damage protection to main, feeder, and branch circuits, for all types of loads - yet, they require only half the mounting space needed for 600VAC Class RK fuses. AJT's time-delay characteristics are ideal for handling typical motor and transformer inrush currents, while also providing superior current-limiting ability. Ferraz Shawmut AJT30 is comparable to Eaton Cooper Bussmann LPJ-30SP, Littelfuse JTD030, JTD30, Mersen A4J30.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | AJT30 |
| Manufacturer Alternate Number | W213229 |
| UPC | 782001962401 |
| Rated Voltage AC | 600VAC |
| Rated Voltage DC | 500VDC |
| Frequency | 50/60Hz |
| Rated Current | 30A |
| RoHS Compliant | Yes |
| Fuse Class | J |
| Speed/Characteristic | Time Delay |
| Mounting Type | Clip |
| Short Circuit Current Rating (SCCR) | 200kA |
| Indicator | SmartSpot® |
| Connection/Terminal Material | Tin-Plated Copper |
| Terminal Type | Ferrule |
| Body/Insulating Material | GMG |
| Type | Time Delay |
| Height (mm) | 21mm (0.83") |
| Width (mm) | 21mm |
| Depth (Length) (mm) | 58mm |
| Weight (lbs) | 0.20 |
| UOM | ea |
