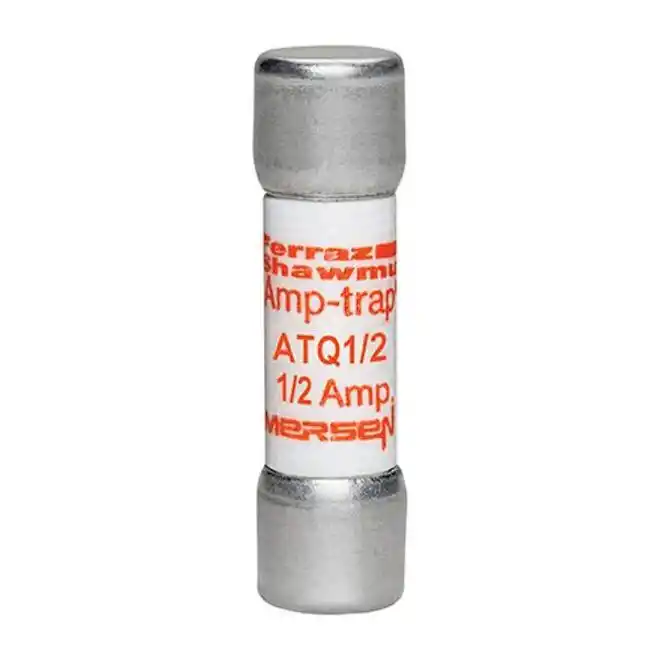

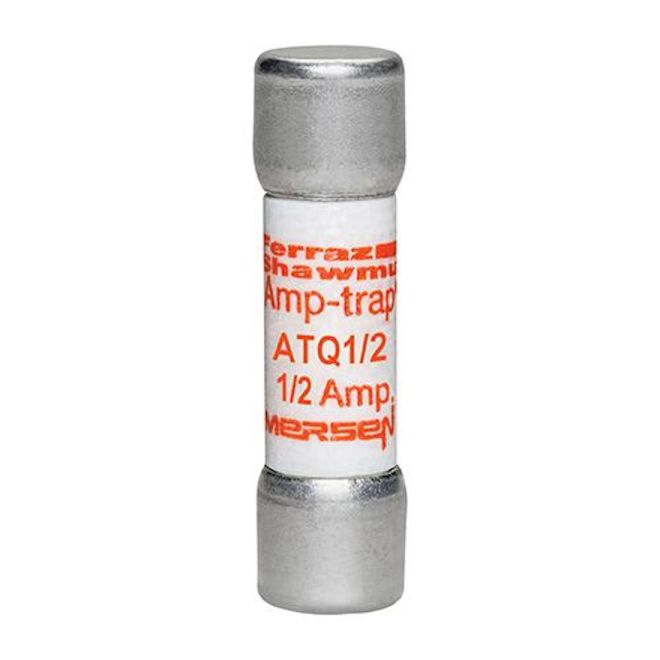

Mersen ATQ1/2 Ferraz Time Delay Midget Fuse
SKU#:
27400
Mersen Amp-Trap® ATQ midget time-delay fuses are rated a full 500 volts AC with 42 ampere ratings from 1/10 to 30A. ATQ1/2 fuses are an excellent choice for supplemental protection of circuits up to 30A where the available short circuit current does not exceed 10,000A. (Not for Branch Circuit Protection). Ferraz Shawmut ATQ1/2 is comparable to Eaton Cooper Bussmann FNQ-1/2, Littelfuse FLQ-1/2, FLQ.500.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | ATQ1/2 |
| Manufacturer Alternate Number | Y212173 |
| UPC | 782001902667 |
| Rated Voltage AC | 500VAC |
| Rated Current | 0.5A |
| RoHS Compliant | Yes |
| Fuse Class | Midget |
| Speed/Characteristic | Time Delay |
| Mounting Type | Clip |
| Short Circuit Current Rating (SCCR) | 10kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Terminal Type | Ferrule |
| Body/Insulating Material | GMG |
| Type | Time Delay Midget |
| Height (mm) | 11mm (0.43") |
| Width (mm) | 11mm |
| Depth (Length) (mm) | 39mm |
| Weight (lbs) | 0.01 |
| UOM | ea |
