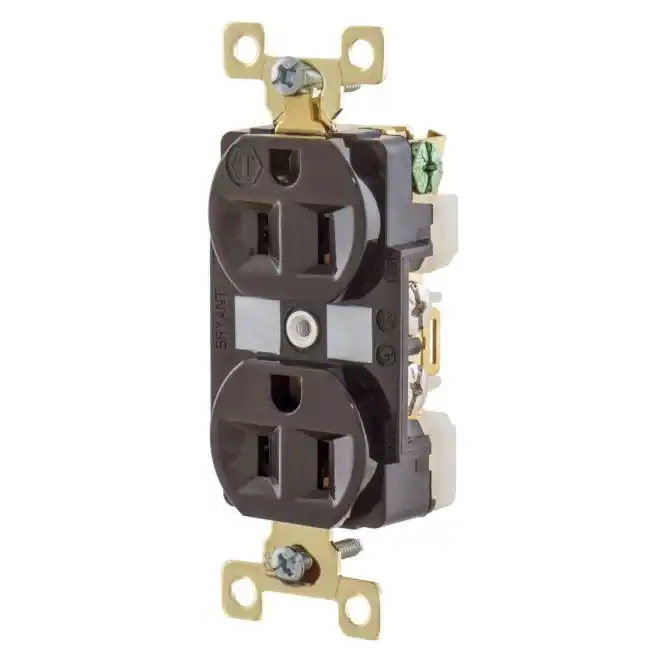

BRYANT BRY5262 15A 125V 2-Pole 3-Wire Receptacles
SKU#:
312244
BRYANT BRY5262 one-piece ground system provides a more reliable continuity to ground than riveted designs. Triple-wipe brass line contacts deliver excellent conductivity for low resistance, low heat rise. Superior spring properties provide reliable, long-life blade retention. All nylon, wrap-around, full-face design provides secure assembly, even under stress.
| Brand | BRYANT / Hubbell |
|---|---|
| Manufacturer Part Number | BRY5262 |
| UPC | 781786005013 |
| Color | Brown |
| UL Rating Type | NEMA 5-15R |
| Rated Current | 15A |
| Power Phase | 1-Phase |
| Type | Receptacle |
| Number of Pins/Wires | 3 |
| Rated Voltage | 125V |
| Number of Poles | 2 |
| Height (mm) | 84mm (3.31") |
| Width (mm) | 40mm |
| Depth (Length) (mm) | 30mm |
| Weight (lbs) | 0.25 |
| UOM | ea |
