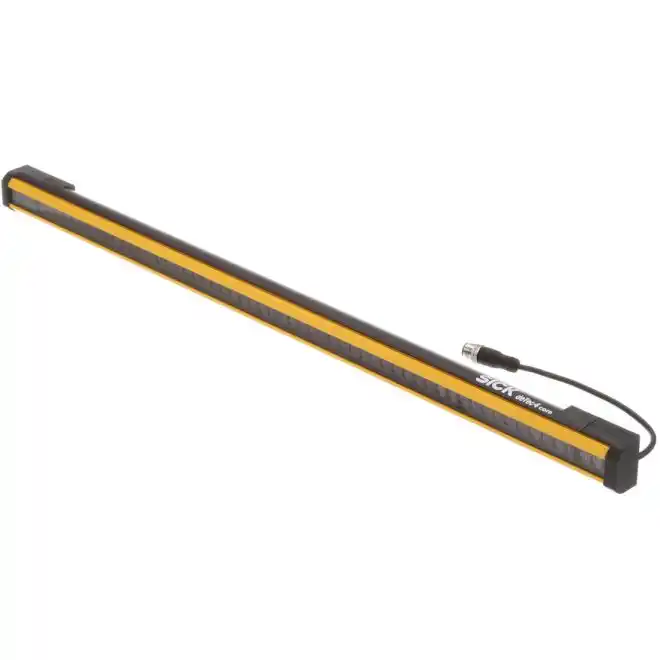

SICK C4P-SA09011A00 1220088 Safety Light Sender
SKU#:
609016
SICK C4P-SA09011A00 intelligent deTec safety light curtains are ideal for the protection of hazardous areas, entrances, and hazardous points. Modern technologies such as NFC and IO-Link with their diverse functionality increase the level of automation and thereby productivity. The result: Simple on-site diagnostics, fast commissioning, and comprehensive data for automating downstream processes. Furthermore, the flexible connection concept like deTec type 1000 in combination with the uniform housing design ensures low cabling, installation and configuration costs.
| Brand | SICK |
|---|---|
| Manufacturer Part Number | C4P-SA09011A00 |
| Manufacturer Alternate Number | 1220088 |
| Cascading | Yes |
| Minimum Object Resolution | 14mm |
| Muting | Yes |
| Operating Range | 20m |
| Protected Height Range | 900mm |
| Safety Outputs | 2 PNP, 500mA at 24VDC |
| Reduced Resolution | Yes |
| Height (mm) | 41mm |
| Width (mm) | 41mm |
| Depth (Length) (mm) | 913mm |
| Weight (lbs) | 6.61 |
| UOM | ea |
