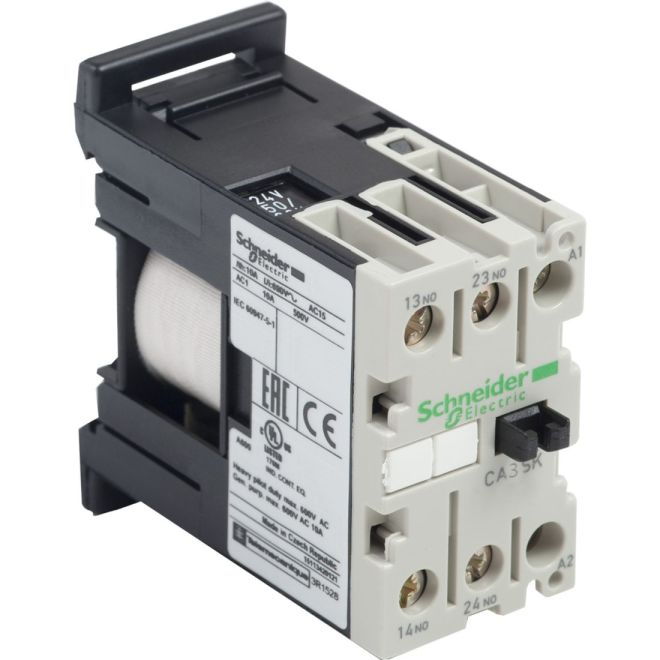

Square D CA3SK20BD TeSys SK Control Relays 24VDC
SKU#:
73123
Schneider Electric TySys SK CA3SK20BD is a series of miniature contactors from 5A to 12A. The offering ranges from 27mm to 45mm in width and includes an SKGC fitting for use in modular panels. Square D TeSys SK mini-contactors are compact and reliable. The modular format range includes a 1 power pole version as additional contact block to provide a 3-pole contractor in 27 mm width. Telemecanique TeSys SK mini-contactors can be used for a variety of applications across industry, infrastructure, building and more. Specific applications include: Small AC 3 loads (up to 400 V), AC 1 loads up to 20 A, and Modular panel applications.
| Brand | Schneider Electric / Telemecanique / Square D |
|---|---|
| Manufacturer Part Number | CA3SK20BD |
| Manufacturer Alternate Number | CA3SK 20BD |
| UPC | 785901866756 |
| Rated Voltage | 690V |
| Coil Voltage | 24VDC |
| Contact Arrangement | 2 N/O |
| Mounting Type | DIN Rail, Plate |
| Electrical Connection | Screw Terminals |
| Duty Cycles | 10,000,000 |
| Type | Control Relay |
| Height (mm) | 56mm (2.19") |
| Width (mm) | 27mm |
| Depth (Length) (mm) | 56mm |
| Weight (lbs) | 0.29 |
| UOM | ea |
