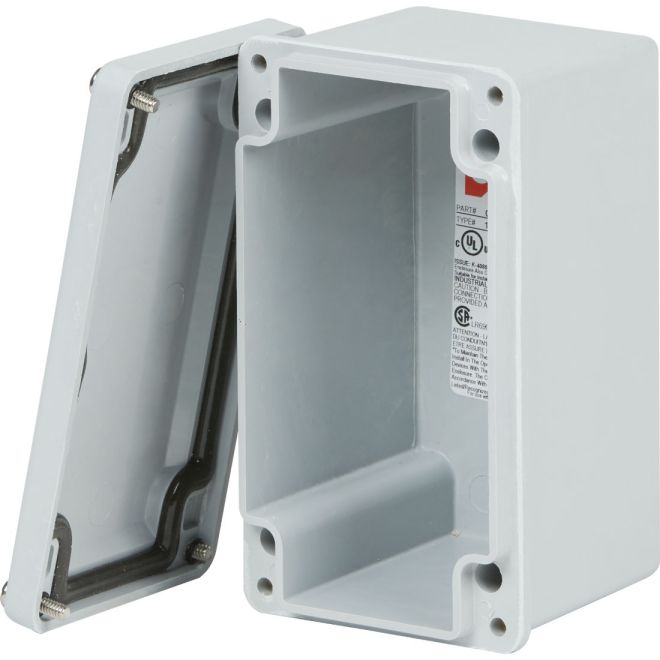

STAHLIN CF532 5 x 3 x 2 Inches Fiberglass Enclosure

SKU#:

34964

STAHLIN CF532 CF and F Series is built around three enclosure designs. All feature a slim style with flush side walls, while the F Series features an overhang cover style. Two are designed from fiberglass reinforced polyester the third from polycarbonate and feature a continuous polyurethane gasket that provides a complete environmental seal. These enclosures are ideal for compact or portable control or simply as a small junction box. This streamlined series features unobstructed sidewalls, captive cover screws and a full range of sizes. The F Series features a small overhang cover but also adds back panel mounting capabilities. CF and F Series enclosures are designed for general electrical and electronic applications and any application that has associated environmental concerns.
Specifications
Brand STAHLIN / ROBROY
Manufacturer Part Number CF532
UPC 78592820430
Material Fiberglass Reinforced Polyester
Color Standard Glacier Grey (PMS 428C)
UL Rating Type Type 1, Type 3R, Type 4X, Type 6P, Type 12
IP Rating IP66
Supply Includes 4 cover screws, lift off cover
Type Enclosure
Height (mm) 152mm (5.97")
Width (mm) 92mm
Depth (Length) (mm) 80mm / 3.15 inch
Weight (lbs) 1.2
UOM ea
