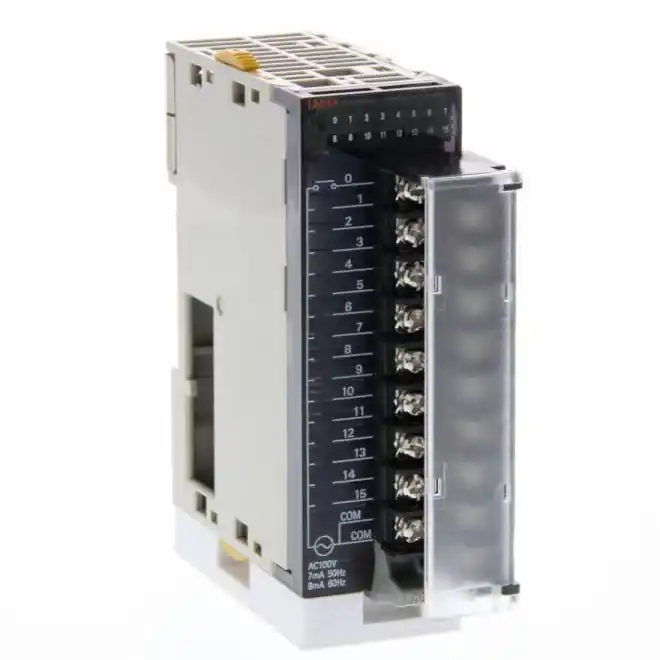

Omron CJ1W-IA111 16 Inputs Digital Input Unit
SKU#:
312009
Omron CJ1 units are available with various I/O densities and connection technologies. Up to 16 I/O points can be wired to units with detachable M3 screw terminals or screwless clamp terminals. High-density 32- and 64- point I/O units are equipped with standard 40-pin 'flatcable'-connectors. Prefabricated cables and wiring terminals are available for easy interfacing to high-density I/O units. CJ1W-IA111 digital I/O units serve as the PLC's interface to achieve fast, reliable sequence control.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | CJ1W-IA111 |
| Manufacturer Alternate Number | CJ1WIA111 |
| UPC | 4547648706025 |
| Total I/O Capacity | 16 |
| I/O Connection Terminal Type | M3 Screw Terminals |
| Number of Input Points | 16 |
| Input Type | AC |
| Inputs per Common | 16 |
| Supply Voltage Range | 100VAC-120VAC |
| Maximum Expansion | 10 |
| Height (mm) | 95.4mm |
| Width (mm) | 31mm |
| Depth (Length) (mm) | 89mm |
| Weight (lbs) | 0.29 |
| UOM | ea |
