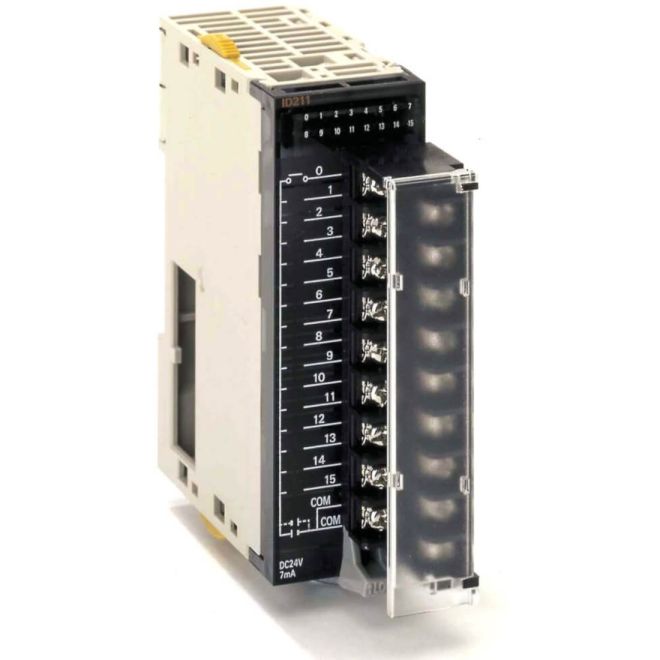

Omron CJ1W-ID211 16-Point 24VDC Digital Input Unit
SKU#:
264475
Omron CJ1 units are available with various I/O densities and connection technologies. Up to 16 I/O points can be wired to units with detachable M3 screw terminals or screwless clamp terminals. High-density 32- and 64- point I/O units are equipped with standard 40-pin 'flatcable'-connectors. Prefabricated cables and wiring terminals are available for easy interfacing to high-density I/O units. CJ1W-ID211 digital I/O units serve as the PLC's interface to achieve fast, reliable sequence control.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | CJ1W-ID211 |
| Manufacturer Alternate Number | CJ1WID211 |
| UPC | 4536854960536 |
| Total I/O Capacity | 16 |
| I/O Connection Terminal Type | M3 Screw Terminals |
| Number of Input Points | 16 |
| Input Type | Digital |
| Inputs per Common | 16 |
| Supply Voltage Range | 24VDC |
| Height (mm) | 90mm |
| Width (mm) | 31mm |
| Depth (Length) (mm) | 89mm |
| Weight (lbs) | 0.13 |
| UOM | ea |
