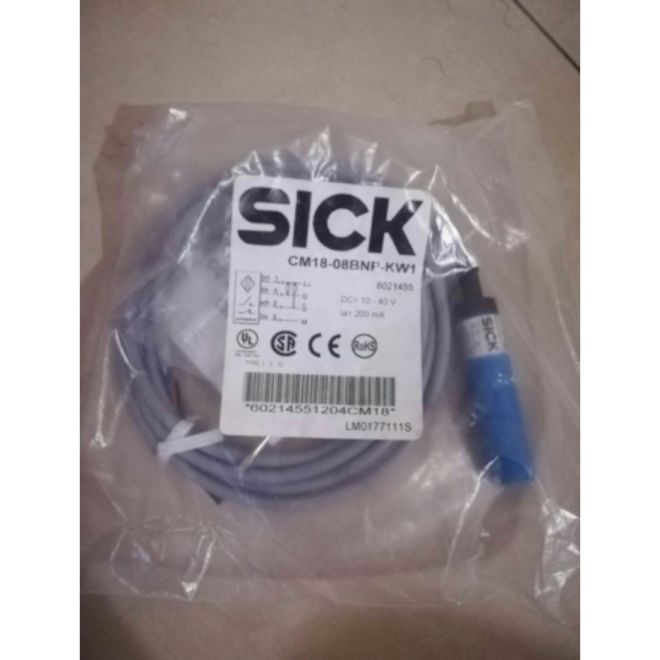

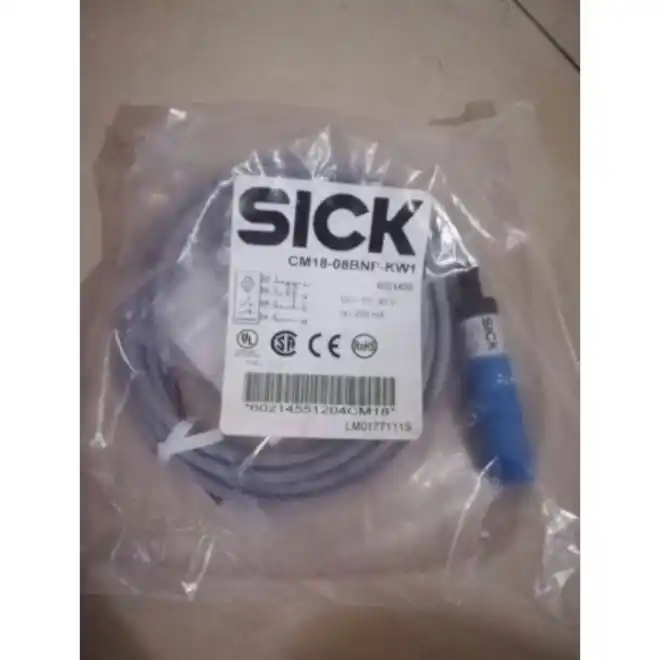

SICK CM18-08BNP-KW1 6021455 Capacitive Sensors
SKU#:
180020
With their cylindrical design, the new generation of capacitive proximity sensors from SICK can be used in a wide range of industrial applications. SICK has placed particular emphasis on ensuring the reliability of these sensors as part of its continual product development. Their electromagnetic compatibility is even better than in previous models and the housing has been Ecolab certified. A further new development is the IP69K enclosure rating, which allows CM18-08BNP-KW1 6021455 sensors to withstand high-pressure cleaning processes. And that's not all: The sensing range has increased, the moisture and dust compensation has improved, and a secondary LED has been added for indicating signal stability. This all combines to provide highly reliable object and media detection. SICK CM18-08BNP-KW1 is comparable to Eaton Cutler Hammer E53KAL18T111E, SICK Replacement Type: CM18-08BNP-EW1 Part number: 6058146.
| Brand | SICK |
|---|---|
| Manufacturer Part Number | 6021455 |
| Manufacturer Alternate Number | CM18-08BNP-KW1 |
| Size | M18 |
| Body Type | Threaded Cylindrical |
| Type | Object Detection, Level Measurement |
| Supply Voltage Range | 10VDC - 36VDC |
| Sensing Range | 3mm - 8mm |
| Shielded | Yes |
| Electrical Connection | Cable, 4-Wire, 2m |
| Cable Length | 2m |
| Output Type | NPN |
| Output Function | Complementary |
| Operation | Capacitive Proximity |
| Threaded Length | 46.5mm |
| Overall Length | 71.5mm |
| Mounting Type | Flush |
| IP Rating | IP67 |
| Height (mm) | 18mm (0.71") |
| Width (mm) | 18mm |
| Depth (Length) (mm) | 71.5mm |
| Weight (lbs) | 0.28 |
| UOM | ea |
