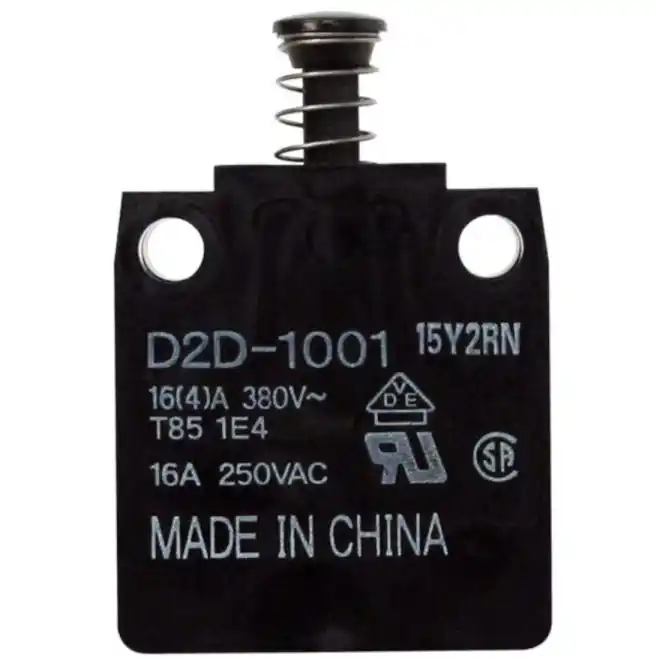

Omron D2D-1001 Door Interlock Power Switch
SKU#:
665
Omron D2D series is a door interlock power switch with minimum contact gap of 3mm required for power switches as standard equipment. D2D-1001 safety considerations include a double return spring and direct drive positive contact opening feature. Pull-on lock model for easy maintenance is also available.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | D2D-1001 |
| Manufacturer Alternate Number | D2D1001 |
| UPC | 4536853183165 |
| Terminal Type | Quick Connect |
| Rated Current | 16A |
| Actuator Type | Pin Plunger |
| Switch Type | SPST-N/O |
| Electrical Operations Minimum | 100,000 Operations |
| Mechanical Operations Minimums | 10,000,000 Operations |
| Mounting Type | Chassis 4.3mm Hole |
| IP Rating | IP40 |
| Type | Power |
| Height (mm) | 33.6mm |
| Width (mm) | 30mm |
| Depth (Length) (mm) | 12.4mm |
| Weight (lbs) | 0.03 |
| UOM | ea |
