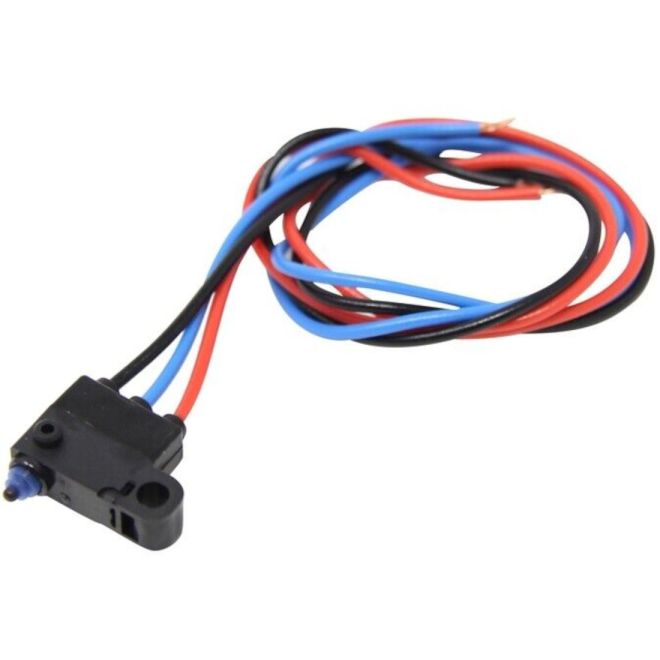

Omron D2HW-C201M Sealed Ultra Subminiature Switch
SKU#:
320172
Smallest sealed snap-action switch in the industry from Omron with a very long stroke for reliable ON/OFF action. The case dimensions are 78% of conventional models, contributing to down-sizing of mechanical modules. Extra-long stroke even without levers. D2HW-C201M is made of environmentally-friendly materials. All models are lead-free, including molded lead wire models.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | D2HW-C201M |
| Manufacturer Alternate Number | D2HWC201M |
| UPC | 4536854701269 |
| Terminal Type | Wire Leads |
| Rated Current | 1mA at 5 VDC to 2A at 12 VDC |
| Actuator Type | Plunger |
| Switch Type | SPDT |
| Electrical Operations Minimum | 100,000 Operations |
| Mechanical Operations Minimums | 1,000,000 Operations |
| Mounting Type | Chassis 3mm Hole |
| IP Rating | IP67 |
| Type | Ultra Subminiature Basic |
| Height (mm) | 11.2mm |
| Width (mm) | 18.5mm |
| Depth (Length) (mm) | 5.3mm |
| Weight (lbs) | 0.01 |
| UOM | ea |
