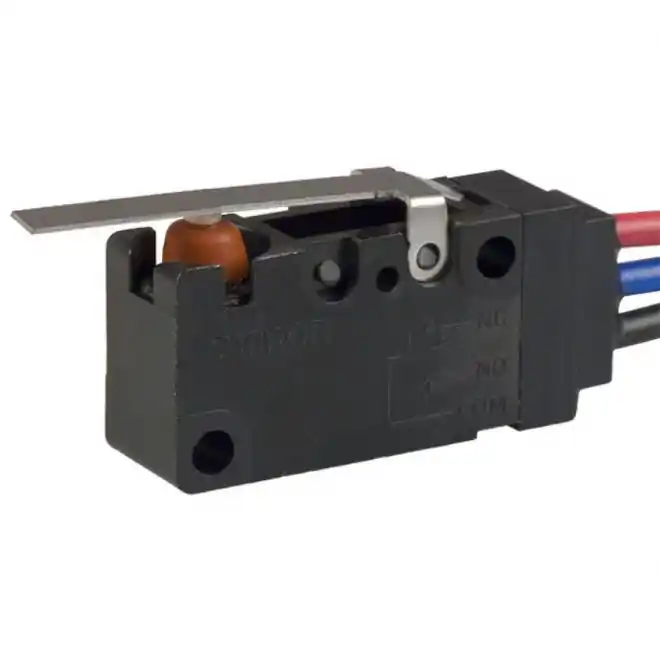

Omron D2VW-5L1-1MS Sealed Miniature Basic Switches
SKU#:
814
Sealed miniature basic switch conforms to IP67 (excluding the terminals on terminal models). Use of epoxy resin assures stable sealing, making this Omron switch ideal for places subject to water spray or excessive dust. V-series internal mechanism assures high precision and durability. The mounting is the same as of the V models. D2VW-5L1-1MS is ideal for automobiles, agricultural machines, large-scale home appliances, and industrial equipment, which require high environmental resistance.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | D2VW-5L1-1MS |
| Manufacturer Alternate Number | D2VW5L11MS |
| UPC | 4547648201438 |
| Terminal Type | Molded Lead Wires |
| Rated Current | 5A at 250 VAC, 0.1A at 30 VDC |
| Actuator Type | Hinge Lever |
| Switch Type | SPDT |
| Electrical Operations Minimum | 100,000 Operations |
| Mechanical Operations Minimums | 10,000,000 Operations |
| Mounting Type | Chassis 3.1mm Hole |
| IP Rating | IP67 |
| Type | Miniature Basic |
| Height (mm) | 15.9mm |
| Width (mm) | 33mm |
| Depth (Length) (mm) | 10.3mm |
| Weight (lbs) | 0.02 |
| UOM | ea |
