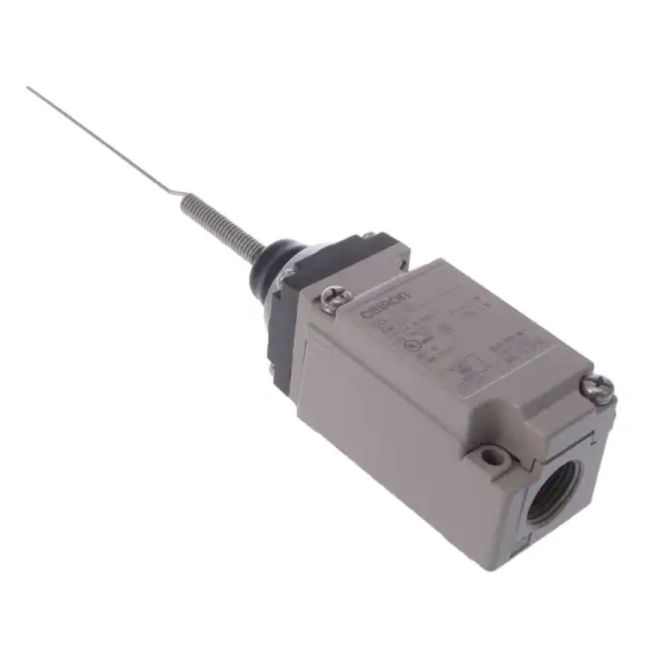

Omron D4A-1115N General-Purpose Limit Switch
SKU#:
328861
D4A-1115-N limit switch with better seal, shock resistance, and strength. A double seal on the head, a complete gasket cover, and other features ensure a better seal (meets UL NEMA 3, 4, 4X, 6P, 12, 13). Block mounting method to reduce weight to 290g. Block mounting method also reduces downtime for maintenance. Wide standard operating temperature range: –40°C to 100°C (standard type). Omron models with fluoro-rubber available for greater resistance to chemicals. DPDT, double-break models available for complex operations.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | D4A-1115-N |
| Manufacturer Alternate Number | D4A1115N |
| UPC | 4536853200763 |
| Terminal Type | Screw Terminal |
| Rated Current | 10A at 250 VAC |
| Actuator Type | Cat Whisker Lever |
| Switch Type | SPDT Double Break |
| Conduit Size | 1/2-14 NPT |
| Electrical Operations Minimum | 1,000,000 Operations |
| Mechanical Operations Minimums | 50,000,000 Operations |
| Mounting Type | Chassis 5.2mm Hole |
| IP Rating | IP67 |
| Type | General-Purpose |
| Indicator | No |
| Height (mm) | 400.5mm |
| Width (mm) | 42mm |
| Depth (Length) (mm) | 44mm |
| Weight (lbs) | 0.64 |
| UOM | ea |
