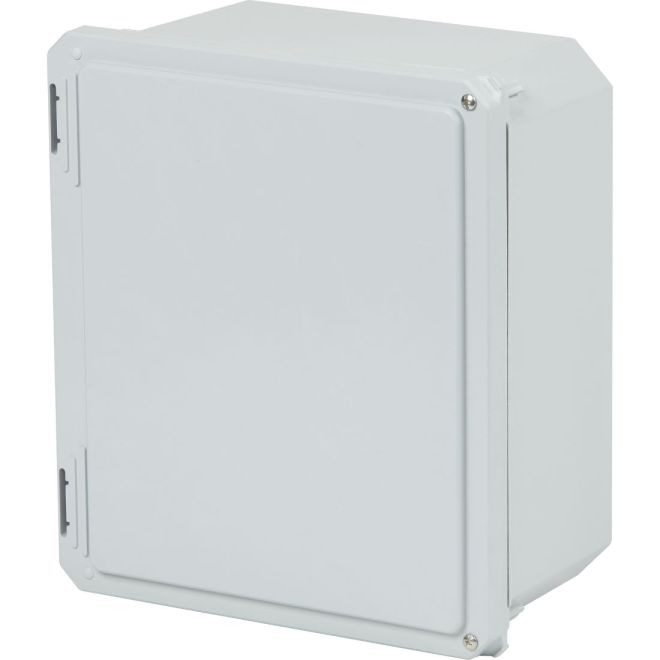

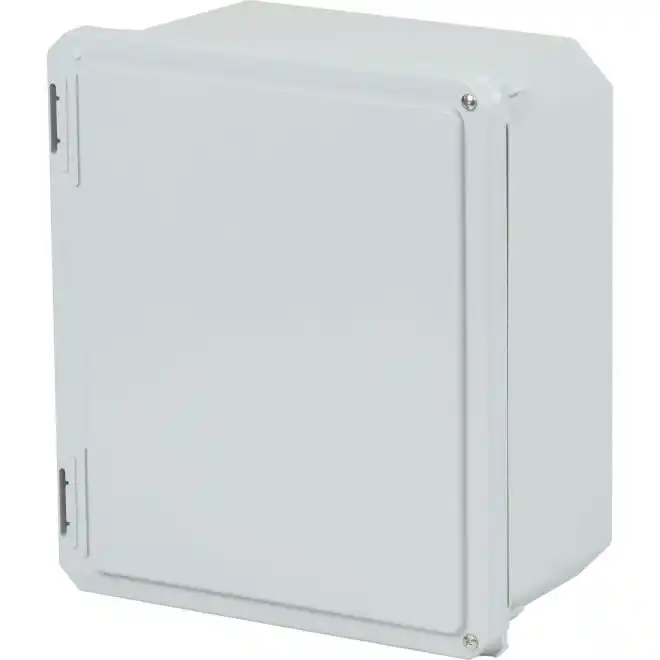

STAHLIN DS161408HW 16 14 8 Fiberglass Enclosures
SKU#:
261054
Stahlin Diamond Shield® Series DS161408HW was developed for design flexibility and pleasing aesthetics. Applications include high-end electronics, harsh corrosive environments, and industrial applications both indoors and out. Unique internal panel management capabilities provides the end user with only the features they need for their application, yet able to use every cubic inch of valuable internal enclosure space. The series offers an additional feature of panel mounting in the cover for use as an operator interface in industrial equipment control stations when required.
| Brand | STAHLIN / ROBROY |
|---|---|
| Manufacturer Part Number | DS161408HW |
| UPC | 78592890837 |
| Material | Fiberglass Reinforced Polyester |
| Color | Standard Glacier Grey (PMS 428C) |
| UL Rating Type | Type 1, Type 3, Type 3S, Type 4X, Type 12, Type 13 |
| IP Rating | IP66 |
| Supply Includes | Hinged Opaque Cover, 2 Cover Screws |
| Mounting Plate | 405mm (15.96") x 305mm (12") |
| Latching System | 2 Cover Screws |
| Door Cover Style | Hinged |
| Number of Doors | 1 |
| Height (mm) | 447mm (17.59") |
| Width (mm) | 405mm (15.96") |
| Depth (Length) (mm) | 212mm (8.34") |
| Weight (lbs) | 13.30 |
| UOM | ea |
