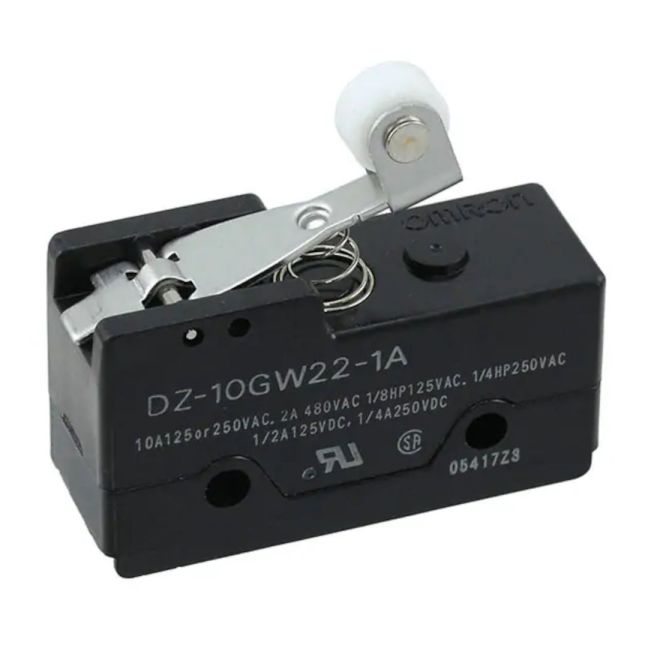

Omron DZ-10GW22-1A Short Hinge Roller Lever Switch
SKU#:
401648
DPDT basic switch for two independent circuit control. Ideal for switching the circuits operating on two different voltages, and for controlling two independent circuits. DZ-10GW22-1A is interchangeable with Omron Z basic switches, as both switches are identical in mounting hole dimensions, mounting pitch and pin plunger position.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | DZ-10GW22-1A |
| Manufacturer Alternate Number | DZ10GW221A |
| UPC | 4536853182045 |
| Terminal Type | Solder Terminal |
| Rated Current | 10A at 250 VAC |
| Actuator Type | Hinge Lever |
| Switch Type | DPDT |
| Electrical Operations Minimum | 500,000 Operations |
| Mechanical Operations Minimums | 1,000,000 Operations |
| Mounting Type | Chassis 4.2mm Hole |
| IP Rating | IP00 |
| Special Function | Two Circuit Switch |
| Type | Special-Purpose Basic |
| Height (mm) | 28mm (1.1") |
| Width (mm) | 49.2mm |
| Depth (Length) (mm) | 17.5mm |
| Weight (lbs) | 0.09 |
| UOM | ea |
