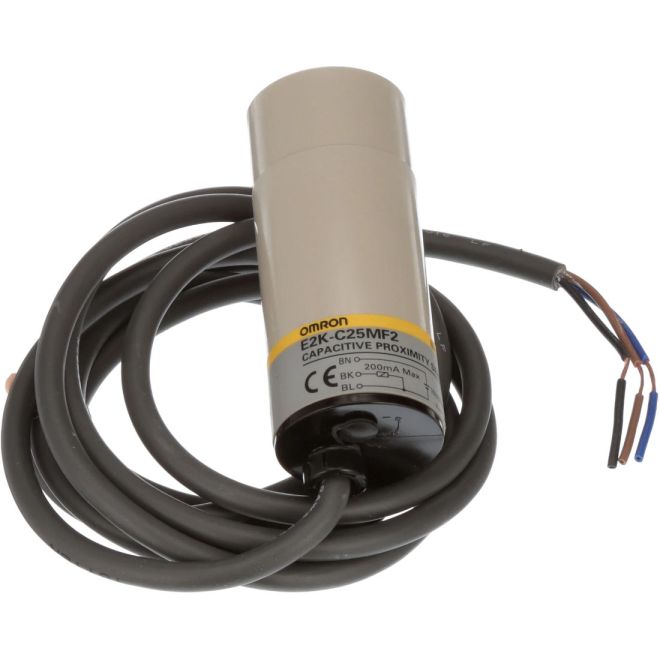

Omron E2K-C25MF2 Long-Distance Proximity Sensor
SKU#:
4443
Omron E2K-C may malfunction if there is an ultrasonic washer, high-frequency generator, transceiver, portable telephone or inverter nearby. E2K-C25MF2 sensor has a case made of heat-resistant ABS resin or PBT resin. Be sure that the case is free from organic solvents or solutions containing organic solvents.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | E2K-C25MF2 |
| Manufacturer Alternate Number | E2KC25MF2 |
| UPC | 4536853263713 |
| Body Type | Smooth Cylindrical |
| Supply Voltage Range | 12VDC - 24VDC |
| Sensing Range | 3mm - 25mm |
| Shielded | No |
| Electrical Connection | PVC Cable |
| Cable Length | 2m |
| Output Type | PNP |
| Operation | Normally Close |
| Mounting Type | Bracket, 34mm opening or sensor well |
| IP Rating | IP67 |
| Height (mm) | 34mm |
| Width (mm) | 34mm |
| Depth (Length) (mm) | 89mm |
| Weight (lbs) | 0.11 |
| UOM | ea |
