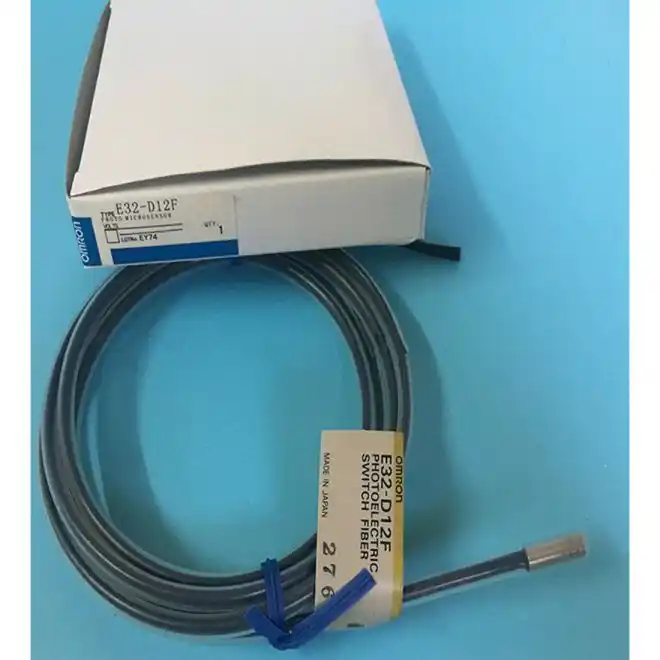

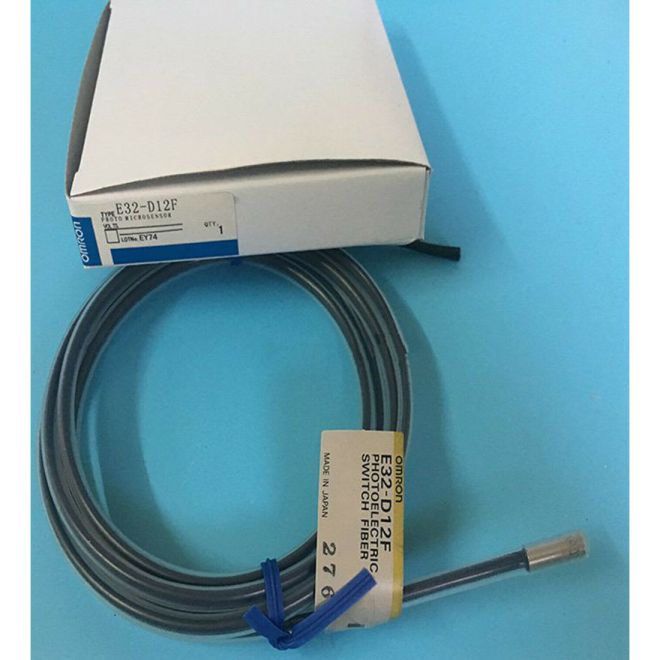

Omron E32-D12F Cylindrical Fiber Sensor Head
SKU#:
3802
Variously-shaped, compact heads allow installation in any small space. The flexible fiber has a small bending radius for easy routing without fiber damage. It improves sensor performance because the cable can be bent without significantly reducing light intensity. Omron E32-D12F fiber units are available for various installation conditions and can be installed as is, even in harsh environments.
| Brand | Omron Automation |
|---|---|
| UOM | ea |
| UPC | 4548583413818 |
| Manufacturer Part Number | E32-D12F |
| Manufacturer Alternate Number | E32D12F |
| Cable Material | Teflon-Covered Black Polyethylene |
| Material | Plastic |
| Sensing Method | Reflective |
| Special Function | Chemical Resistant |
| Bending Radius | 40mm |
| Minimum Sensing Object | 0.03mm dia. |
| Sensing Head Diameter | 6mm |
| Sensing Head Length | 16mm |
| Cable Length | 2m |
| Weight (lbs) | 0.43 |
| Height (mm) | 6mm |
| Width (mm) | 6mm |
| Depth (Length) (mm) | 2000mm |
