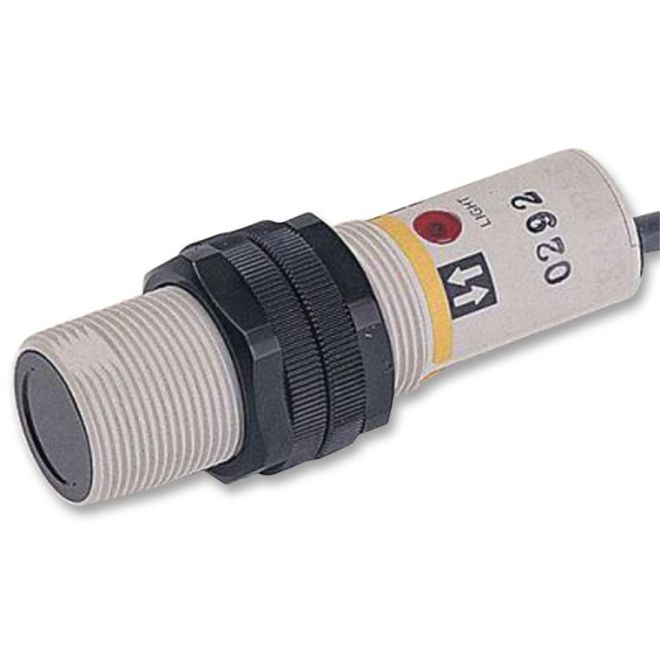

Omron E3F2-LS10C4 2M Diffuse-Reflective Photo Eye
SKU#:
331008
Omron introduces photoelectric sensors with built-in amplifier for use as an optical proximity sensors. M18 DIN-sized cylindrical housing E3F2 series. Complete sensor portfolio in plastic and metal housing. IP67, IP69K for highest water resistance. High immunity against electro-magnetic noise and ambient light. Special beam models. E3F2-LS10C4 has high power LED to compensate for dirt and misalignment.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | E3F2-LS10C4 |
| Manufacturer Alternate Number | E3F2LS10C4 |
| UPC | 4547648085021 |
| Size | M18 |
| Body Type | Threaded Cylindrical |
| Supply Voltage Range | 10VDC - 30VDC |
| Material | Nickel Brass |
| Sensing Method | Background Suppression |
| Sensing Direction | Straight |
| Sensing Range | 100mm |
| Output Type | NPN |
| Light Source | Red LED |
| Electrical Connection | Pre-Wired |
| Cable Length | 2m |
| IP Rating | IP67, IP69K |
| Height (mm) | 24mm |
| Width (mm) | 24mm |
| Depth (Length) (mm) | 64.9mm |
| Weight (lbs) | 0.20 |
| UOM | ea |
