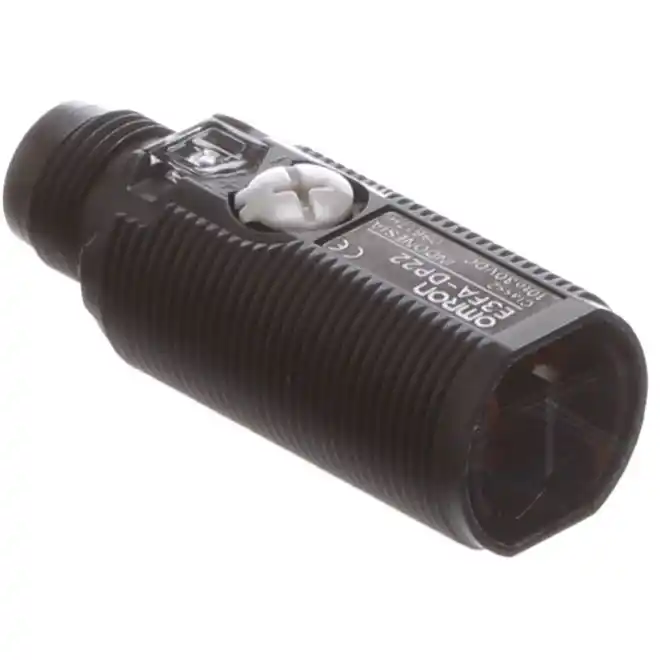

Omron E3FA-DP22 M18 Photoelectric Sensor
SKU#:
429490
E3FA/E3FB series represents a new generation of Omron photoelectric sensors with large varieties of reliable and easy-to use photoelectric sensors. Featuring many standard and special functions this line is addressing many kinds of industries such as packaging, ceramics and material handling. Omron's compact E3FA-DP22 photoelectric sensors is simple and quick to mount, as well as easy and intuitive to set-up. The large and robust adjuster makes life much easier for installers to adjust the sensor, as does the bright, high-power red LED, which is clearly visible for easy alignment, even over longer distances.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | E3FA-DP22 |
| Manufacturer Alternate Number | E3FADP22 |
| UPC | 4548583440906 |
| Size | M18 |
| Body Type | Threaded Cylindrical |
| Type | Short Body |
| Operation | Light-ON, Dark-ON Selectable |
| Supply Voltage Range | 10VDC - 30VDC |
| Material | ABS |
| Sensing Method | Diffuse-Reflective |
| Sensing Direction | Straight |
| Sensing Range | 300mm |
| Output Type | PNP |
| Light Source | Red LED |
| Electrical Connection | M12 Connector |
| IP Rating | IP67, IP69K |
| Height (mm) | 15mm |
| Width (mm) | 16.6mm |
| Depth (Length) (mm) | 45mm |
| Weight (lbs) | 0.04 |
| UOM | ea |
