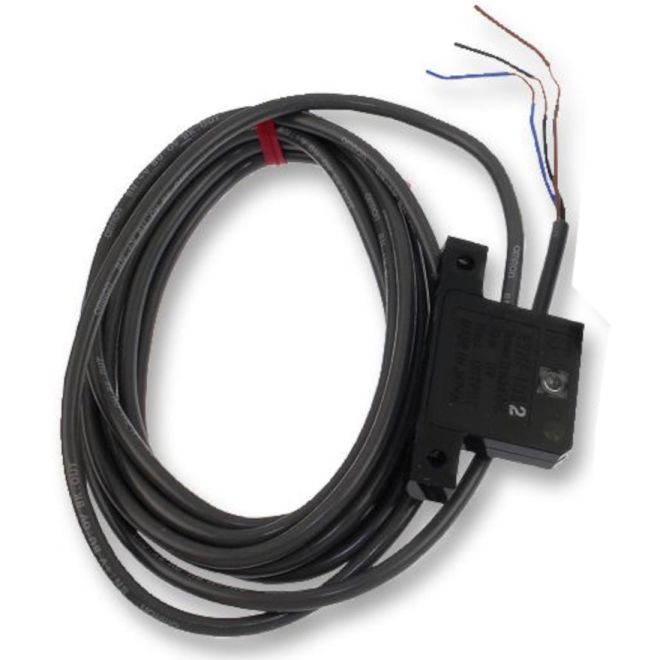

Omron E3HF-1E2 Through-Beam Photoelectric Sensor
SKU#:
3972
Ultra-thin 7mm model Omron E3HF requires very little depth for installation, helping to save space. Through-beam sensors are normally sold in sets that include both the emitter and receiver. When using through-beam models like E3HF-1E2, order one bracket for the receiver and one for the emitter.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | E3HF-1E2 |
| Manufacturer Alternate Number | E3HF1E2 |
| UPC | 4536853275112 |
| Type | Ultra-Thin Body |
| Operation | Dark-ON |
| Supply Voltage Range | 12VDC - 24VDC |
| Material | ABS |
| Sensing Method | Through-Beam |
| Sensing Direction | Straight |
| Sensing Range | 700mm |
| Output Type | NPN |
| Light Source | Infrared LED |
| Electrical Connection | Pre-Wired |
| Cable Length | 2m |
| IP Rating | IP64 |
| Height (mm) | 28mm (1.1") |
| Width (mm) | 7mm |
| Depth (Length) (mm) | 50mm |
| Weight (lbs) | 0.24 |
| UOM | ea |
