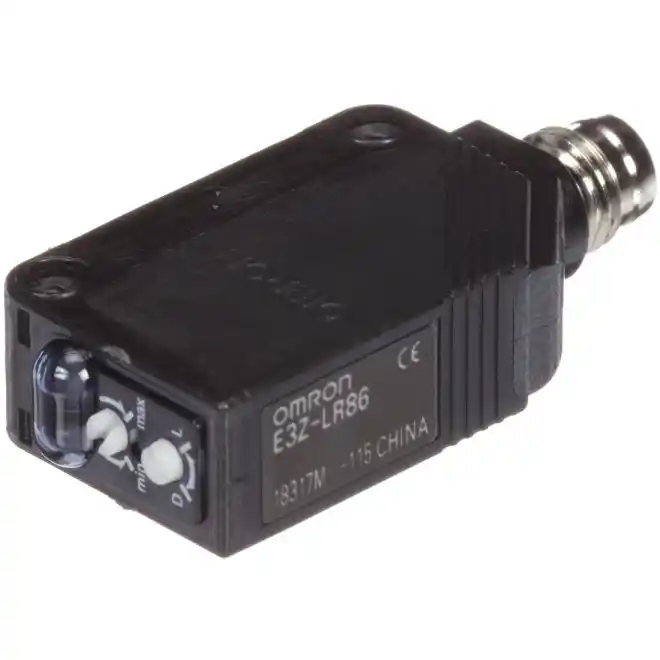

Omron E3Z-LR86 Laser Photoelectric Sensor
SKU#:
374889
Omron E3Z-LR86's small spot beam permits ideal detection of minute objects or detecting objects through narrow gaps in application. Powerful Class 2 (safe) laser provides reliable sensing in the most dirty or dusty of environments with ultra long detection distance; 60m through-beam; 15m retro-reflective; 300mm distance-settable models. Optical flexibility and characteristics allow for simple sensor alignment with object. Distance-settable models offer long distance, diffuse type with no influence from background. NPN or PNP output models available. M8 connector ready or 2 m, pre-wired models available.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | E3Z-LR86 |
| Manufacturer Alternate Number | E3ZLR86 |
| UPC | 4547648678841 |
| Body Type | Rectangular |
| Operation | Light-ON, Dark-ON Selectable |
| Supply Voltage Range | 12VDC - 24VDC |
| Material | PBT |
| Sensing Method | Retro-Reflective |
| Sensing Range | 300mm - 1.5m |
| Output Type | PNP |
| Light Source | Red LED |
| Electrical Connection | M8 Connector |
| IP Rating | IP67 |
| Height (mm) | 43.5mm |
| Width (mm) | 10.8mm |
| Depth (Length) (mm) | 20mm |
| Weight (lbs) | 0.04 |
| UOM | ea |
