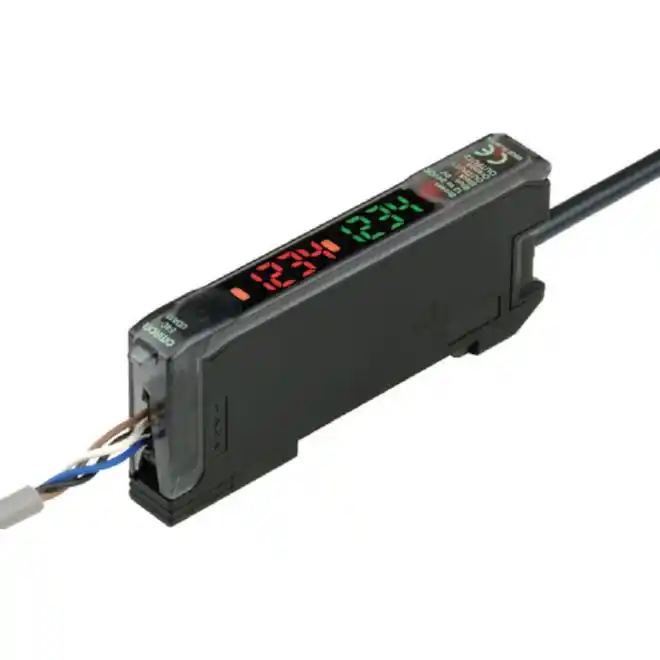

Omron E4C-UDA41 Digital Amplifiers DC PNP Output
SKU#:
402591
Ultrasonic waves are used to enable stable detection of transparent objects, such as transparent films, glass bottles, plastic bottles, and plate glass, using through-beam or reflective sensors. Omron E4C-UDA41 two-output or one-output (analog output) amplifier can be selected to suit the application. A voltage of 1 to 5 V is output depending on the detection volume (digitally displayed). This can be used for a variety of applications, such as position control and multi-level discrimination and detection.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | E4C-UDA41 |
| Manufacturer Alternate Number | E4CUDA41 |
| UPC | 4547648260114 |
| Body Type | Rectangular |
| Supply Voltage Range | 12VDC - 24VDC |
| Material | PBT |
| Sensing Method | Ultrasonic |
| Output Type | PNP |
| Electrical Connection | Pre-Wired |
| Cable Length | 2m |
| IP Rating | IP50 |
| Height (mm) | 76mm |
| Width (mm) | 10mm |
| Depth (Length) (mm) | 32mm |
| Weight (lbs) | 0.33 |
| UOM | ea |
