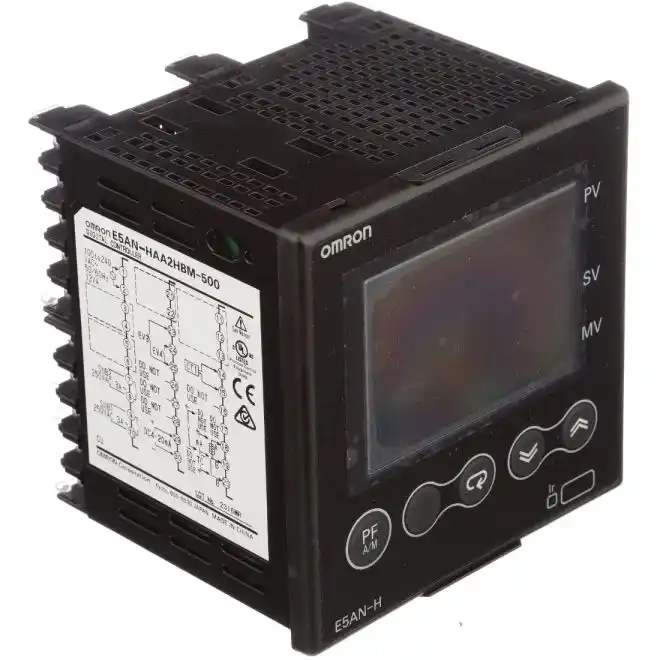

Omron E5AN-HAA2HBM-500 AC100-240 Controller
SKU#:
402708
Omron E5AN-H series takes the proven E5EN features to the next level of process control. The N-H-series (E5CN-H, E5EN-H and E5AN-H) has the same ease of installation and operation with the same menu structure as the E5CN series. The E5EN-H has improved accuracy, speed and process control features with accessories.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | E5AN-HAA2HBM-500 AC100-240 |
| Manufacturer Alternate Number | E5ANHAA2HBM500AC100240 |
| UPC | 4547648451826 |
| Alarms | 3 Relays |
| Control Function | Heat & Cool |
| Control Method | ON/OFF-Control, 2-PID Control |
| Display | Triple Line |
| IP Rating | IP66 |
| Input Sampling Period | 60ms |
| Input Type | Thermocouple, RTD, Linear |
| Output Type | Relay Output |
| Terminal Type | Screw Terminal |
| Mounting Type | Panel |
| Supply Voltage Range | 100VAC - 240VAC |
| Communications | USB (E58-CIFQ1), Option Units RS-232C (E53-EN01), RS-422 (E53-EN02), RS-485 (E53-EN03) |
| Event Inputs | 2 |
| Height (mm) | 96mm |
| Width (mm) | 96mm |
| Depth (Length) (mm) | 112mm |
| Weight (lbs) | 0.68 |
| UOM | ea |
