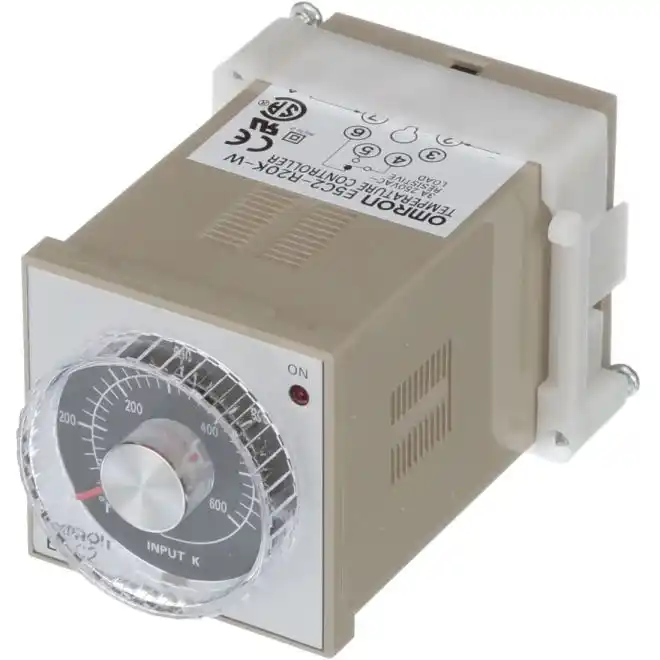

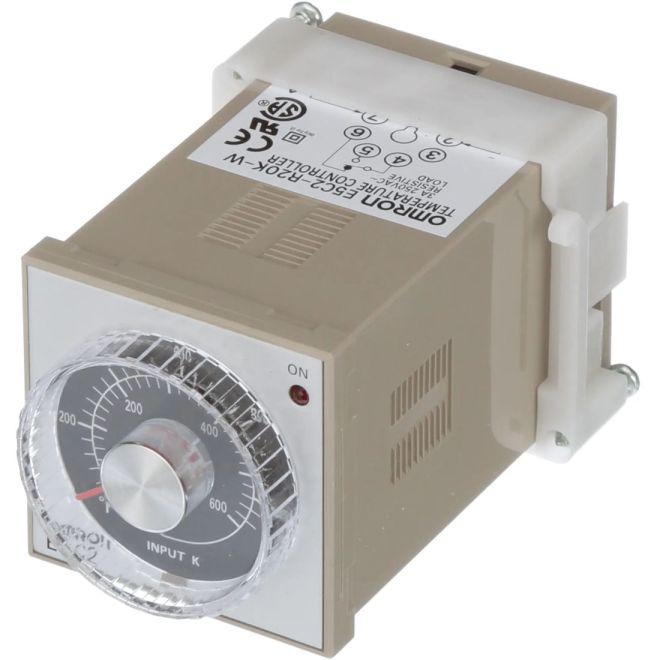

Omron E5C2-R20K-W AC100-240 32-2192 Controller
SKU#:
576475
Omron E5C2-R20K-W AC100-240 32-2192 is a DIN-sized (48 x 48 mm) Temperature Controller with Analog Setting. Compact, low-cost Temperature Controller. Incorporates proportional control and reset adjustment function. Consecutive mounting possible using mounting adapter. Incorporates a plug-in socket, thus allows to DIN-track and flush mounting.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | E5C2-R20K-W AC100-240 32-2192 |
| Manufacturer Alternate Number | E5C2R20KWAC100240322192 |
| UPC | 4548583418417 |
| Control Method | ON/OFF-Control |
| IP Rating | IP40 |
| Input Type | K-Type Thermocouple |
| Output Type | Relay Output |
| Terminal Type | Plug-in, 8 Pin (Octal) |
| Mounting Type | Panel |
| Supply Voltage Range | 100VAC - 240VAC |
| Height (mm) | 48mm |
| Width (mm) | 48mm |
| Depth (Length) (mm) | 101.7mm |
| Weight (lbs) | 0.44 |
| UOM | ea |
