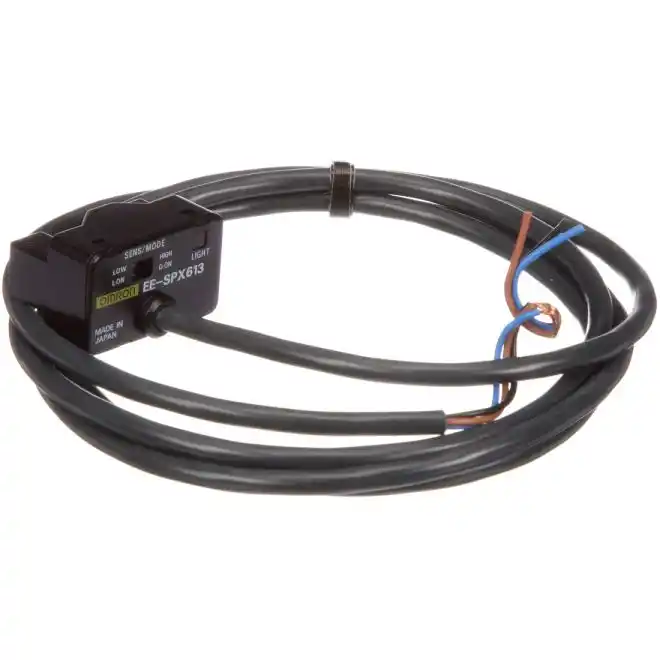

Omron EE-SPX613 Liquid Level Photo Microsensor
SKU#:
898
Omron optical Sensors provide a compact, low-cost method to detect workpieces. Many models are available, including Slot-type Sensors (through-beam) for non-modulated or modulated light, Reflective Sensors, and Sensors with separate emitters and receivers. Sensors like EE-SPX613 are also available for special applications.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | EE-SPX613 |
| Manufacturer Alternate Number | EESPX613 |
| UPC | 4536853234195 |
| Body Type | Standard |
| Type | Photomicro |
| Operation | Light-ON, Dark-ON Selectable |
| Supply Voltage Range | 12VDC - 24VDC |
| Material | Polycarbonate |
| Sensing Method | Through-Beam |
| Sensing Range | 13mm |
| Output Type | NPN |
| Light Source | GaAs infrared LED |
| Electrical Connection | Pre-Wired |
| Cable Length | 1m |
| IP Rating | IP50 |
| Special Function | Slot |
| Height (mm) | 19mm |
| Width (mm) | 26mm |
| Depth (Length) (mm) | 16mm |
| Weight (lbs) | 0.17 |
| UOM | ea |
