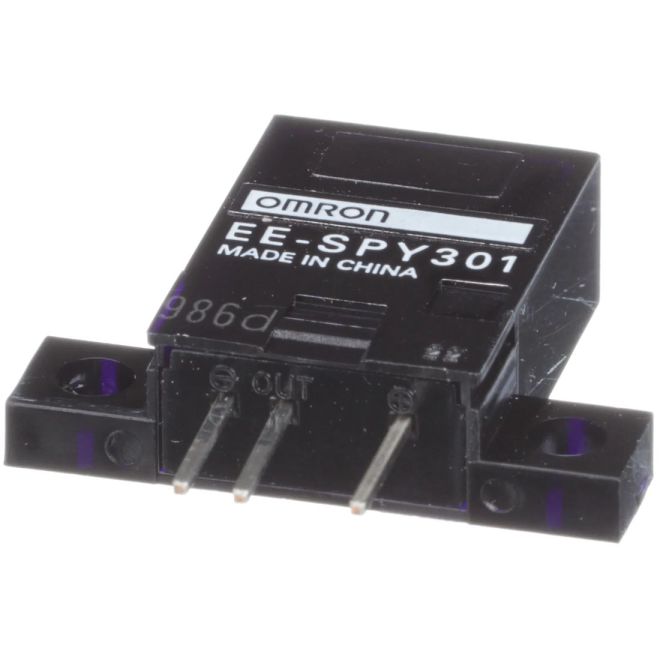

Omron EE-SPY301 Slot-Type Photo Microsensor
SKU#:
899
Omron optical Sensors provide a compact, low-cost method to detect workpieces. Many models are available, including Slot-type Sensors (through-beam) for non-modulated or modulated light, Reflective Sensors, and Sensors with separate emitters and receivers. With Slot-type Sensors like EE-SPY301, the emitter and receiver are set in a U shape to enable easy handling. With Reflective Sensors, light is shown on the workpiece and reflected light is detected.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | EE-SPY301 |
| Manufacturer Alternate Number | EESPY301 |
| UPC | 4536854778070 |
| Type | Horizontal |
| Operation | Dark-ON |
| Supply Voltage Range | 5VDC - 24VDC |
| Material | Polycarbonate |
| Sensing Method | Reflective |
| Sensing Range | 5mm |
| Output Type | NPN |
| Light Source | GaAs infrared LED |
| Electrical Connection | Connector |
| IP Rating | IP50 |
| Height (mm) | 27.5mm |
| Width (mm) | 26mm |
| Depth (Length) (mm) | 7mm |
| Weight (lbs) | 0.01 |
| UOM | ea |
