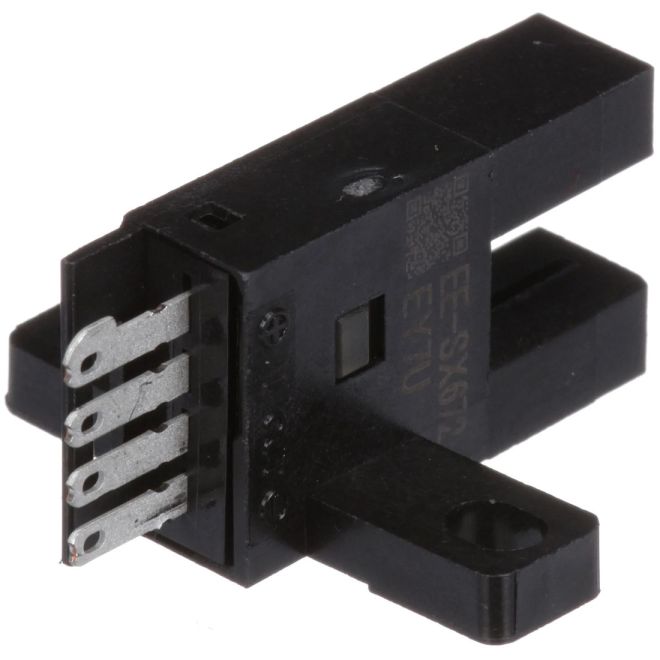

Omron EE-SX672 Slot-Type Photo Microsensor
SKU#:
980
Omron optical Sensors provide a compact, low-cost method to detect workpieces. Many models are available, including Slot-type Sensors (through-beam) for non-modulated or modulated light, Reflective Sensors, and Sensors with separate emitters and receivers. For slot-type models such as EE-SX672, the emitter and receiver are set in a U shape to enable easy handling.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | EE-SX672 |
| Manufacturer Alternate Number | EESX672 |
| UPC | 4548583476134 |
| Type | T-Shaped, Slot Center 7mm |
| Operation | Light-ON, Dark-ON Selectable |
| Supply Voltage Range | 5VDC - 24VDC |
| Material | Polycarbonate |
| Sensing Method | Through-Beam |
| Sensing Range | 7mm |
| Output Type | NPN |
| Light Source | Incident Light |
| Electrical Connection | Plug-in Connector |
| IP Rating | IP50 |
| Height (mm) | 13.7mm |
| Width (mm) | 29mm |
| Depth (Length) (mm) | 28.4mm |
| Weight (lbs) | 0.01 |
| UOM | ea |
