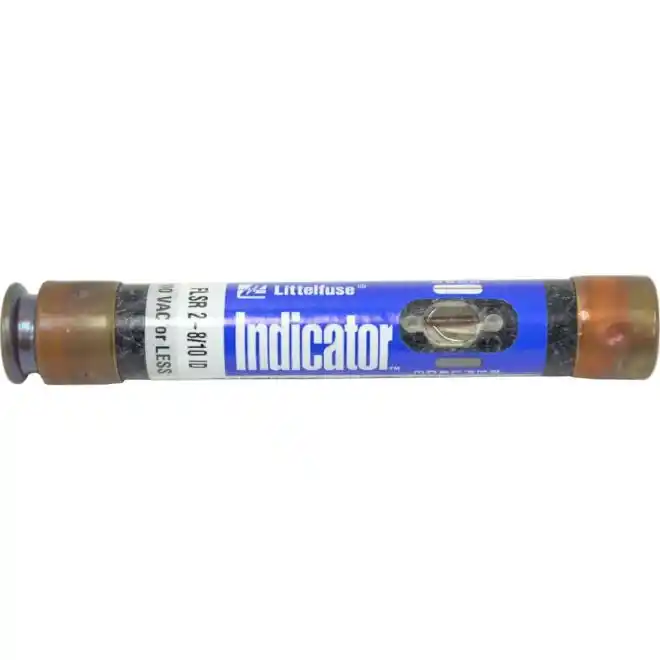

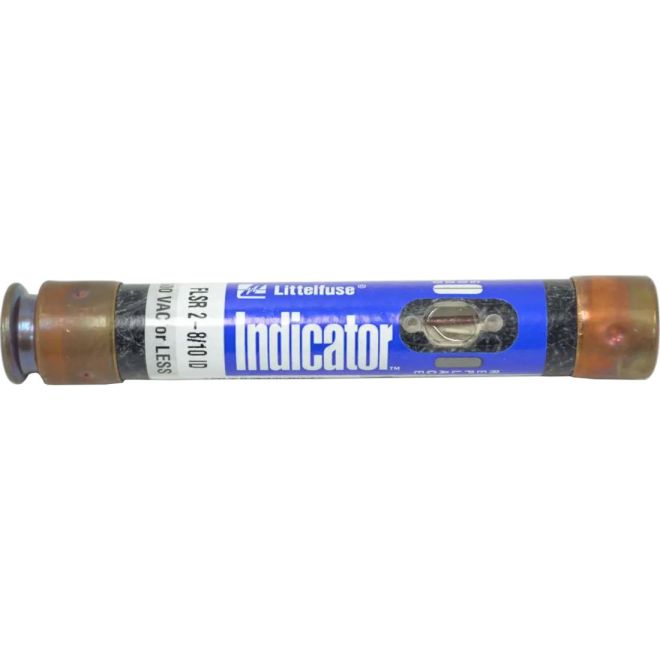

Littelfuse FLSR 2 8/10ID RK5 Time Delay 2.8A Fuses
SKU#:
38594
Littelfuse FLSR 2-8/10 ID Indicator™ fuses provide visual blown fuse indication at a glance. The patented state-of-the-art solid state design provides maximum reliability and superior performance characteristics in a true dual-element design. The use of Indicator fuses reduces down-time, nuisance opening, increases safety, and can save thousands of dollars in lost production time. The FLSR_ID series fuses provide excellent protection for all types of circuits especially those containing motors. Littelfuse FLSR02.8ID is comparable to Mersen Ferraz Shawmut TRS2-8/10R and Bussmann Fusetron FRS-R 2-8/10.
| Brand | Littelfuse |
|---|---|
| Manufacturer Part Number | FLSR02.8ID |
| Manufacturer Alternate Number | FLSR02.8TXID |
| UPC | 07945802520 |
| Rated Voltage AC | 600VAC |
| Rated Voltage DC | 300VDC |
| Rated Current | 2.8A |
| Fuse Class | Class RK5 |
| Speed/Characteristic | Time Delay |
| Mounting Type | Industrial Cartridge |
| Indicator | Yes |
| Terminal Type | Ferrule |
| Body/Insulating Material | Composite |
| Type | Slo-Blo/Time Lag |
| Height (mm) | 127mm |
| Width (mm) | 20.7mm |
| Depth (Length) (mm) | 20.7mm |
| Weight (lbs) | 0.10 |
| UOM | ea |
