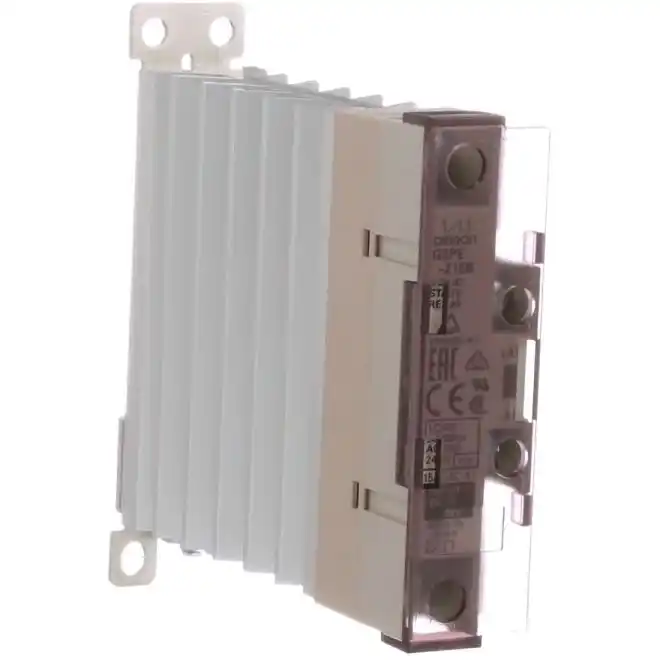

Omron G3PE-215B DC12-24 12VDC-24VDC 15A SSR
SKU#:
403605
Omron G3PE features an original surge-pass circuit that gives outstanding surge endurance and protects the semiconductor device against voltages in excess of 30kV. The G3PE-215B DC12-24 is heavy. Firmly mount the DIN track and secure both ends with End Plates for DIN-track-mounting models. When mounting the G3PE directly to a panel, firmly secure it to the panel.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | G3PE-215B DC12-24 |
| Manufacturer Alternate Number | G3PE215BDC1224 |
| UPC | 4547648524896 |
| Supply Voltage Range | 4VDC - 30VDC |
| Rated Current | 15 A |
| Max Operating Input Voltage | 9.6VDC - 30VDC |
| Indicator | LED |
| Input Impedance Range | 4.5mA max. - 10mA max. |
| Max Rated Load Voltage | 110VAC - 240VDC |
| Max Applicable Load Voltage | 132VAC - 264VAC |
| Max Load Current | AC: 0.6A - AC: 15A |
| RoHS Compliant | Yes |
| Operating Temperature | -30°C - +80°C |
| Inrush Current | 150A (60HZ, 1 Cycle) |
| Power Phase | 1-Phase |
| Mounting Type | DIN Rail |
| Terminal Type | Screw Terminal |
| Contact Arrangement | 1 Form A (SPST-N/O) |
| Zero Cross Function | Yes |
| Height (mm) | 100mm |
| Width (mm) | 100mm |
| Depth (Length) (mm) | 22.5mm |
| Weight (lbs) | 0.53 |
| UOM | ea |
