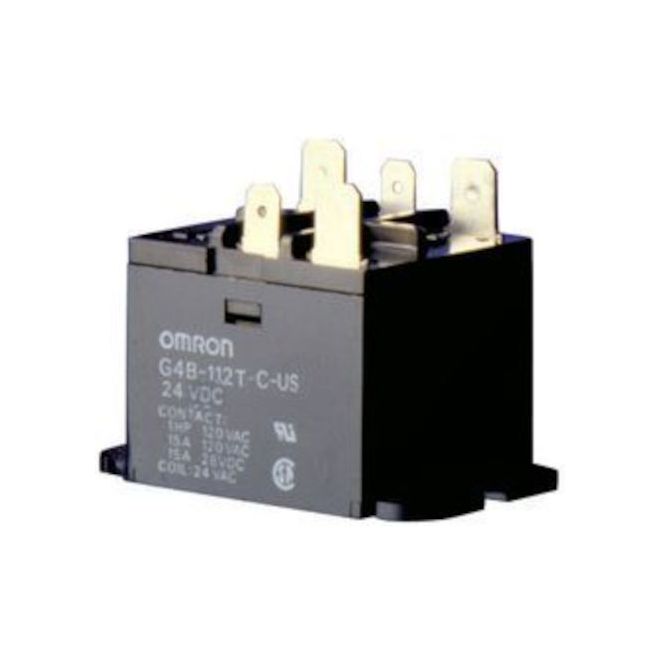

Omron G4B-112T-C-US-DC24 General Purpose Relay
SKU#:
1303
Omron G4B miniature relay is ideal for switching motor load, lamp load, heater, etc. Creepage distance of more than 2.03 mm (0.08 in). Upper mounting bracket type G4B-112T-C-US-DC24 is available for easy wiring and mounting. High capacity types are also available with #110 connect coil terminals.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | G4B-112T-C-US DC24 |
| Manufacturer Alternate Number | G4B112TCUSDC24 |
| Coil Voltage | 24VDC |
| Contact Arrangement | 1 Form C (SPDT-N/O, N/C) |
| Terminal Type | Quick Connect |
| Mounting Type | Panel |
| Max. Switching Voltage | 250 VAC, 125 VDC |
| Rated Current | 20A |
| Max. Switching Power(Resistive) | 3,300 VA, 360 W |
| Max. Switching Power (Inductive) | 2,200 VA, 170 W |
| Operating Temperature | -10 °C - +50 °C |
| Duty Cycles | 10,000,000 |
| Height (mm) | 38.6mm |
| Width (mm) | 50.8mm |
| Depth (Length) (mm) | 32.5mm |
| Weight (lbs) | 0.10 |
| UOM | ea |
