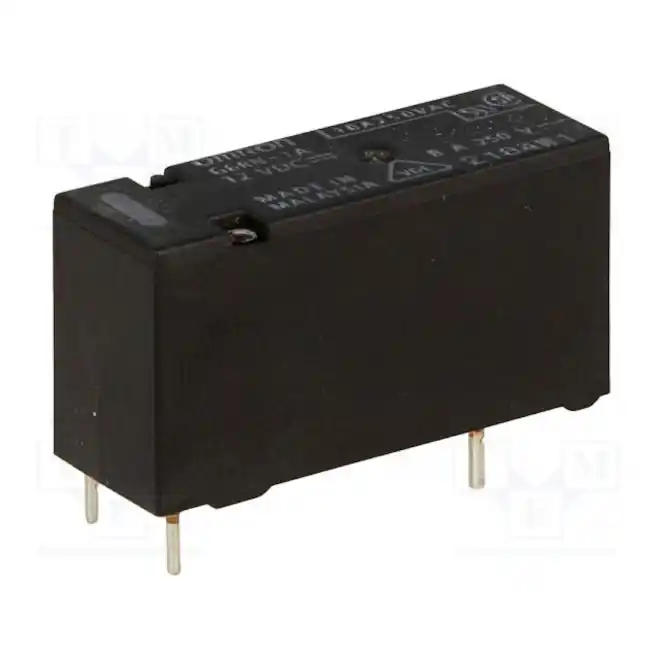

Omron G6RN-1A DC12 1-Pole 12VDC PCB Power Relay
SKU#:
1776
Low-profile height of 15 mm (approximately 60% the height of the Omron G2R model). Capable of switching with 8 A at 250 VAC despite its small size. High sensitivity with 220mW power consumption. G6RN-1A DC12 offers high insulation with insulation distance of 8 mm and impulse withstand voltage of 10kV between coil and contacts. Satisfies ambient operating temperature requirement of 85°C. Standard model conforms to VDE standards.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | G6RN-1A DC12 |
| Manufacturer Alternate Number | G6RN1ADC12 |
| UPC | 4536853472061 |
| Coil Voltage | 12VDC |
| Contact Arrangement | 1 Form A (SPST-N/O) |
| Terminal Type | PCB |
| Mounting Type | Through-Hole |
| Max. Switching Voltage | 250 VAC, 30 VDC |
| Max. Switching Current | 8 A |
| Rated Load (Resistive) | 8 A at 250 VAC, 5 A at 30 VDC |
| Operating Temperature | -40°C - +85°C |
| Power Consumption | Approx. 200 mW |
| RoHS Compliant | Yes |
| Duty Cycles | 50,000 |
| Height (mm) | 18.5mm |
| Width (mm) | 28.5mm |
| Depth (Length) (mm) | 10mm |
| Weight (lbs) | 0.02 |
| UOM | ea |
