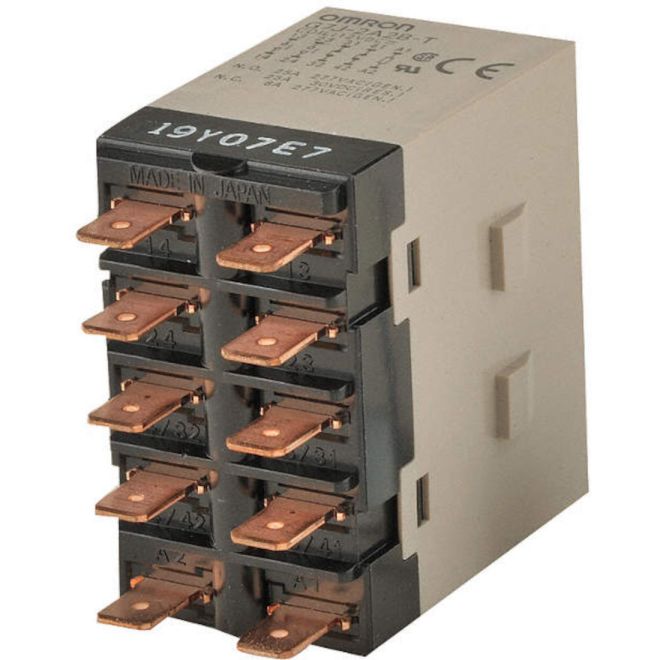

Omron G7J-2A2B-T AC100/120 General Purpose Relay
SKU#:
336126
With a rated load current of 25A due to the miniature hinge for maximum switching power, Omron G7J can switch both motor loads as well as resistive and inductive loads. G7J-2A2B-T AC100/120 has no contact chattering for momentary voltage drops up to 50% of its rated voltage.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | G7J-2A2B-T AC100/120 |
| Manufacturer Alternate Number | G7J2A2BTAC100120 |
| UPC | 4536853475901 |
| Coil Voltage | 100VAC - 120VAC |
| Contact Arrangement | 2 Form A (DPST-N/O), 2 Form B (DPST-N/C) |
| Terminal Type | Quick Connect |
| Mounting Type | Chassis |
| Max. Switching Voltage | 250 VAC, 125 VDC |
| Max. Switching Current | 25 A |
| Rated Load (Resistive) | 25 A / 8 A at 220 VAC / 25 A / 8 A at 30 VDC |
| Max. Switching Power(Resistive) | 5,500 VA, 750 W / 1,760 VA, 240 W |
| Operating Temperature | -25°C - +60°C |
| Power Consumption | Approx.1.8 VA to 2.6 VA |
| Duty Cycles | 100,000 |
| Height (mm) | 64mm |
| Width (mm) | 51.5mm |
| Depth (Length) (mm) | 34.5mm |
| Weight (lbs) | 0.36 |
| UOM | ea |
