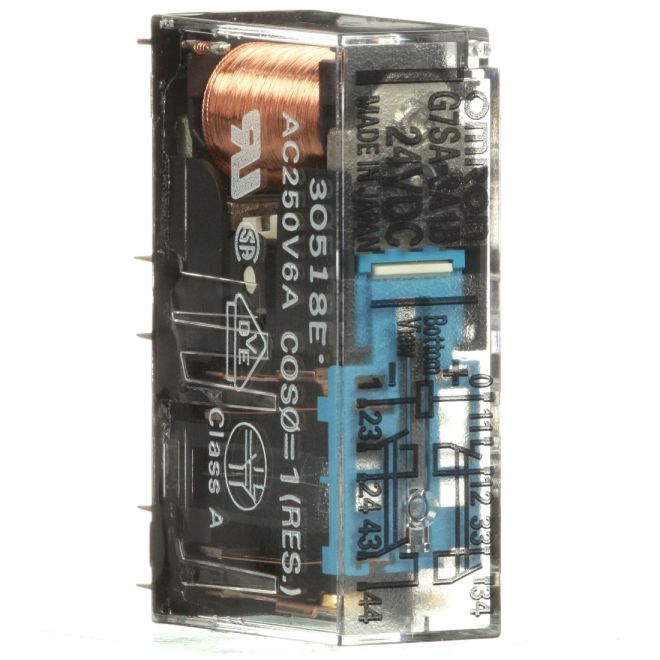

Omron G7SA-3A1B DC24 Relay Forcibly Guided Contact
SKU#:
336249
Omron slim G7SA relay family with forcibly guided contacts is available as a four or six-pole type in various contact combinations and offers reinforced insulation. Terminals are arranged for easy PCB layout. G7SA-3A1B DC24 can be soldered directly to a PCB or used together with the P7SA sockets.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | G7SA-3A1B DC24 |
| Manufacturer Alternate Number | G7SA3A1BDC24 |
| UPC | 4536854579752 |
| Coil Voltage | 24VDC |
| Contact Arrangement | 3 N/O + 1 N/C |
| Terminal Type | Plug-in |
| Mounting Type | Base/Socket |
| Max. Switching Voltage | 250 VAC, 125 VDC |
| Max. Switching Current | 6 A |
| Rated Current | 2 A at 240 VAC, 1 A at 24 VDC |
| Rated Load (Resistive) | 6 A at 250 VAC, 6 A at 30 VDC |
| Operating Temperature | -40°C - +85°C |
| Power Consumption | Approx. 360 mW |
| RoHS Compliant | Yes |
| Duty Cycles | 100,000 |
| Height (mm) | 27.5mm |
| Width (mm) | 40mm |
| Depth (Length) (mm) | 13mm |
| Weight (lbs) | 0.05 |
| UOM | ea |
