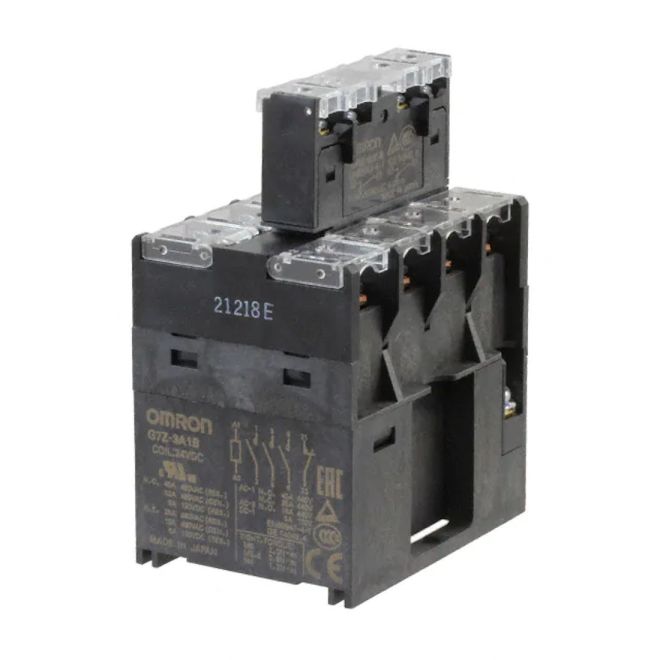

Omron G7Z-3A1B-11Z-R Bifurcated Power Relay
SKU#:
575853
Omron G7Z series provides a compact, cost efficient solution for applications such as inverters, UPS, solar and fuel-cell battery circuits. G7Z-3A1B-11Z-R DC24V relay in combination with auxiliary contact block meets EN 60947-4-1. Coil ratings are available in 12 and 24 VDC. Power consumption is less than 4 watts.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | G7Z-3A1B-11Z-R DC24V |
| Manufacturer Alternate Number | G7Z3A1B11ZRDC24V |
| UPC | 4548583781290 |
| Coil Voltage | 24VDC |
| Contact Arrangement | 3PST-N/O / SPST-N/C |
| Terminal Type | Screw Terminal |
| Mounting Type | Chassis |
| Max. Switching Voltage | 480 VAC, 125 VDC |
| Max. Switching Current | 1 A |
| Rated Current | 0.5 A at 440 VAC |
| Rated Load (Resistive) | 0.5 A at 110 VDC |
| Max. Switching Power(Resistive) | 17,600 VA |
| Max. Switching Power (Inductive) | 9,680 VA |
| Minimum Load | 2 A at 24 VDC |
| Operating Temperature | -25°C - +60°C |
| Power Consumption | Approx. 3.7 W |
| Duty Cycles | 100,000 |
| Height (mm) | 92.2mm |
| Width (mm) | 62mm |
| Depth (Length) (mm) | 45mm |
| Weight (lbs) | 0.73 |
| UOM | ea |
