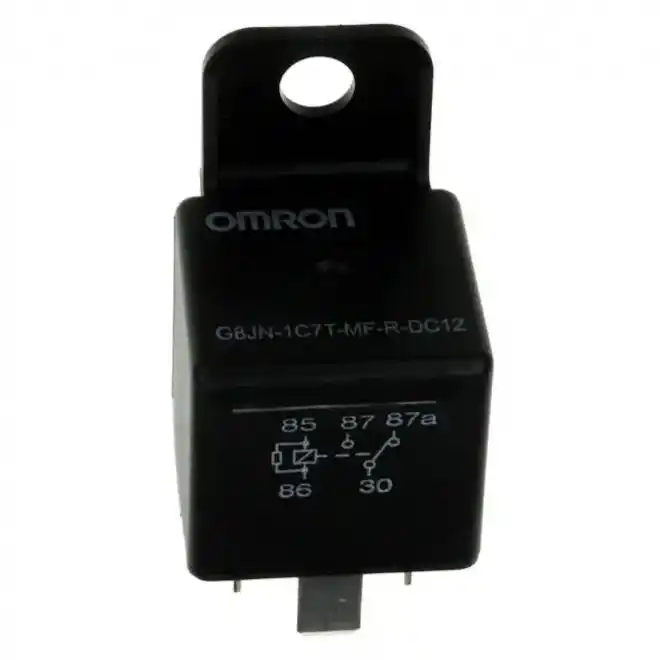

Omron G8JN-1C7T-MF-R-DC12 Automotive Mini Relay
SKU#:
267563
Omron G8JN is a high current switching (inrush current 100A) relay for automotive use. Both SPST and SPDT versions are available. Plug in and weatherproof types. ISO footprint and terminals 6.3 x 0.82mm. Full automated Assembly. G8JN-1C7T-MF-R-DC12 has L x W x H = 28 x 28 x 25.5 mm nominal dimensions. Omron G8JN-1C7T-MF-R-DC12 is comparable to TE Connectivity Potter & Brumfield VF4-45F11.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | G8JN-1C7T-MF-R DC12 |
| Manufacturer Alternate Number | G8JN1C7TMFRDC12 |
| Coil Voltage | 12VDC |
| Contact Arrangement | 1 Form C (SPDT-N/O, N/C) |
| Terminal Type | Plug-in |
| Mounting Type | Chassis |
| Max. Switching Voltage | 16 VDC |
| Max. Switching Current | 35 A, 20 A |
| Operating Temperature | -40°C - +125°C |
| Duty Cycles | 100,000 |
| Height (mm) | 36.5mm |
| Width (mm) | 28mm |
| Depth (Length) (mm) | 28mm |
| Weight (lbs) | 0.07 |
| UOM | ea |
