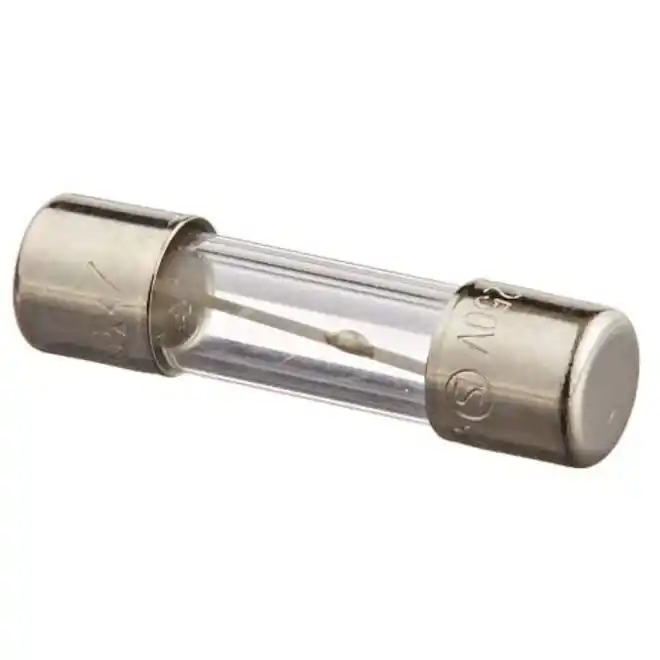

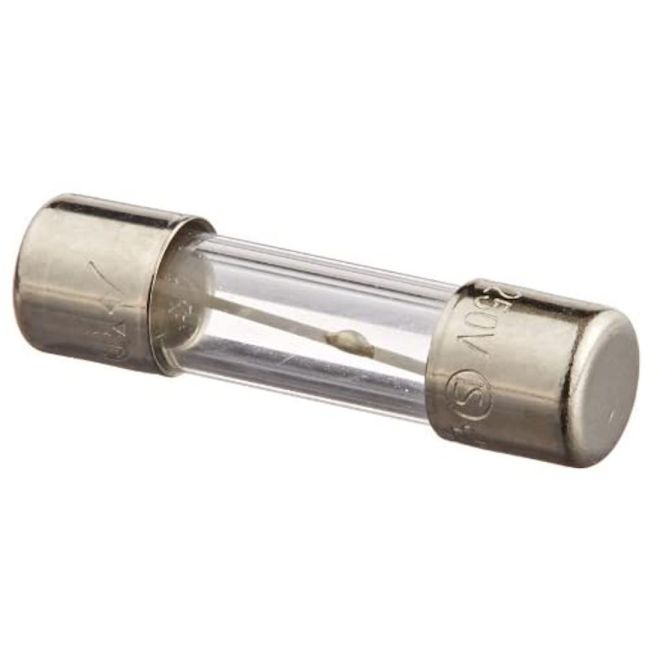

Mersen GDG3-15/100 Ferraz Miniature Glass Fuse

SKU#:

110541

Mersen cartridge-style, time-delay glass fuses tolerate temporary inrush currents without opening, which prevents nuisance-blowing from equipment startups. Also called slow-blow glass fuses, they open to disconnect an electrical circuit when exposed to sustained loads and short circuits. GDG3-15/100 glass fuses provide overcurrent protection for low-current circuits in appliances, electronics circuit boards, and lighting fixtures. They typically have a voltage rating of 300VAC or less and are used for applications where they will not be exposed to high heat that could shatter the glass. Their small, cylindrical body is see-through for checking whether the fuse wire is intact or has melted. Ferraz Shawmut GDG3-15/100 is comparable to Eaton Cooper Bussmann GDC-3.15A, FST034.3122, Schurter 34.3122.
Specifications
Brand Mersen / Ferraz Shawmut / Gould
Manufacturer Part Number GDG3-15/100
UPC 782001764456
Rated Voltage AC 250VAC
Rated Current 3.15A
RoHS Compliant Yes
Fuse Class Supplemental
Speed/Characteristic Time Delay
Mounting Type Clip
Terminal Type Ferrule
Body/Insulating Material Glass
Type Time Delay
Height (mm) 5mm (0.196")
Width (mm) 5mm
Depth (Length) (mm) 20mm
Weight (lbs) 0.01
UOM ea
